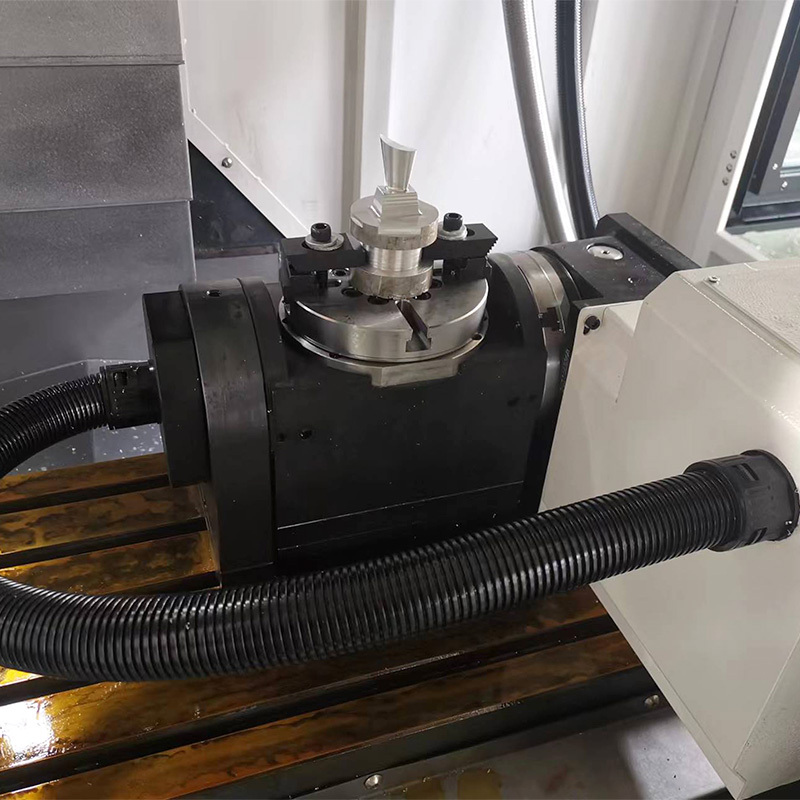

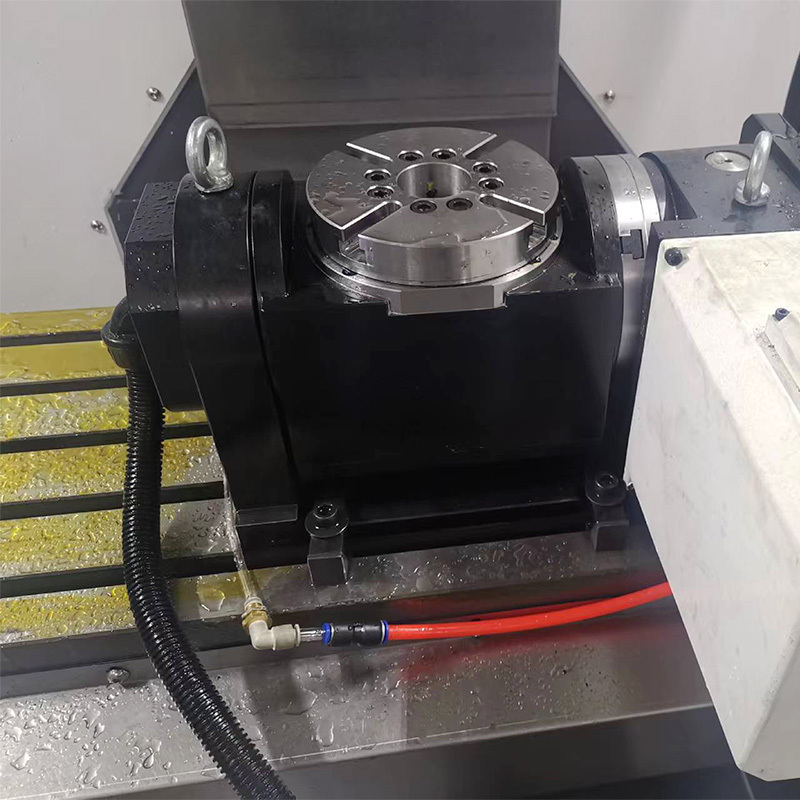

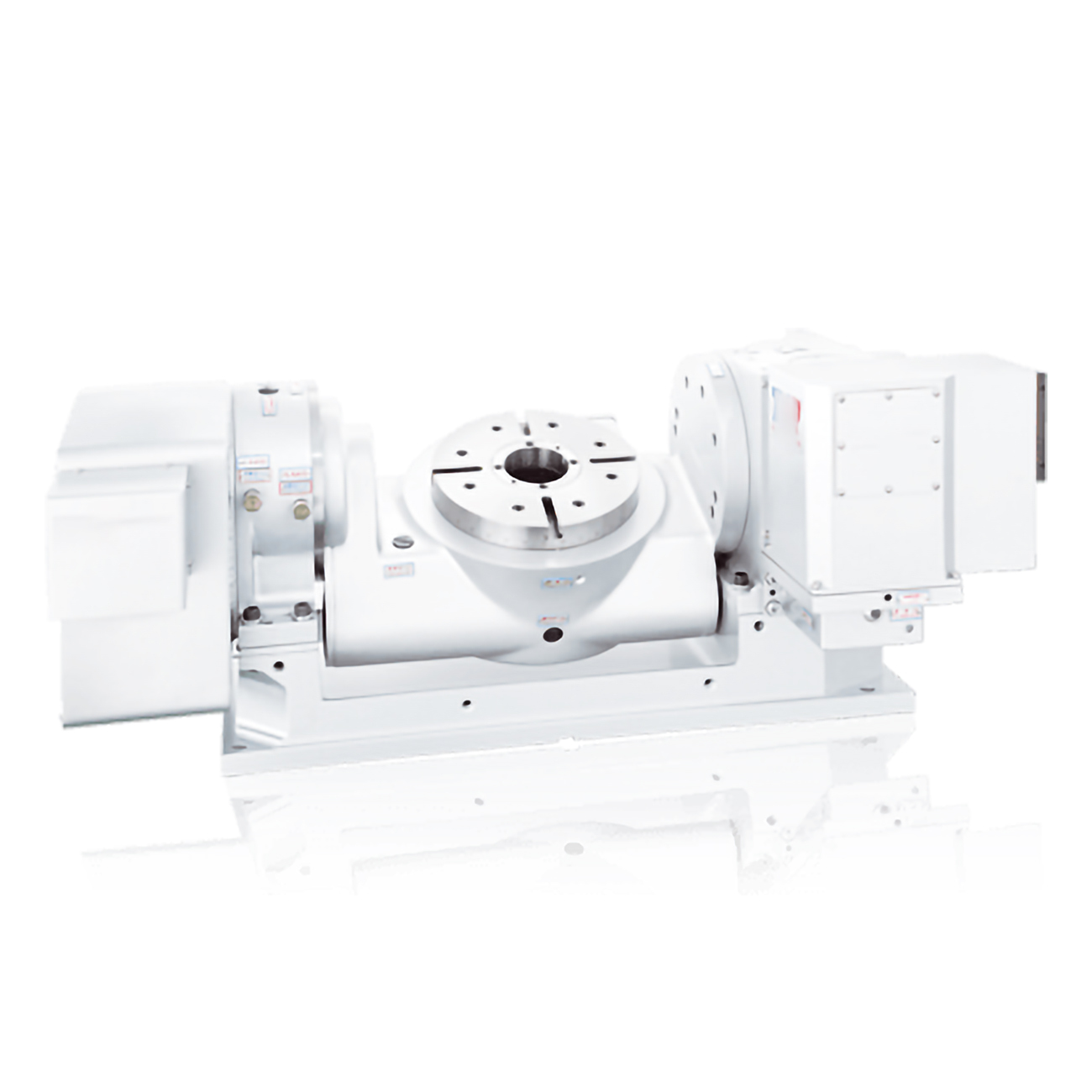

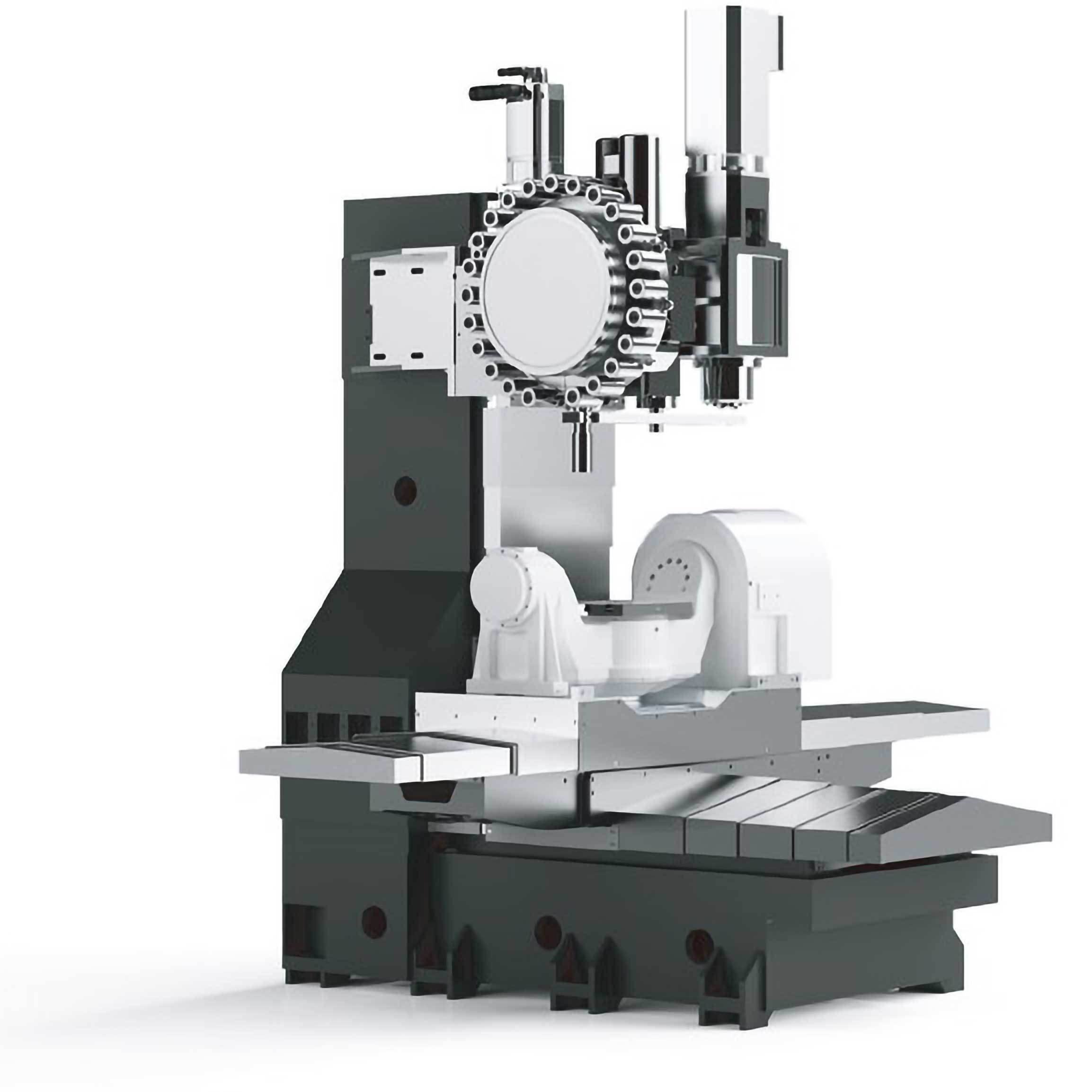

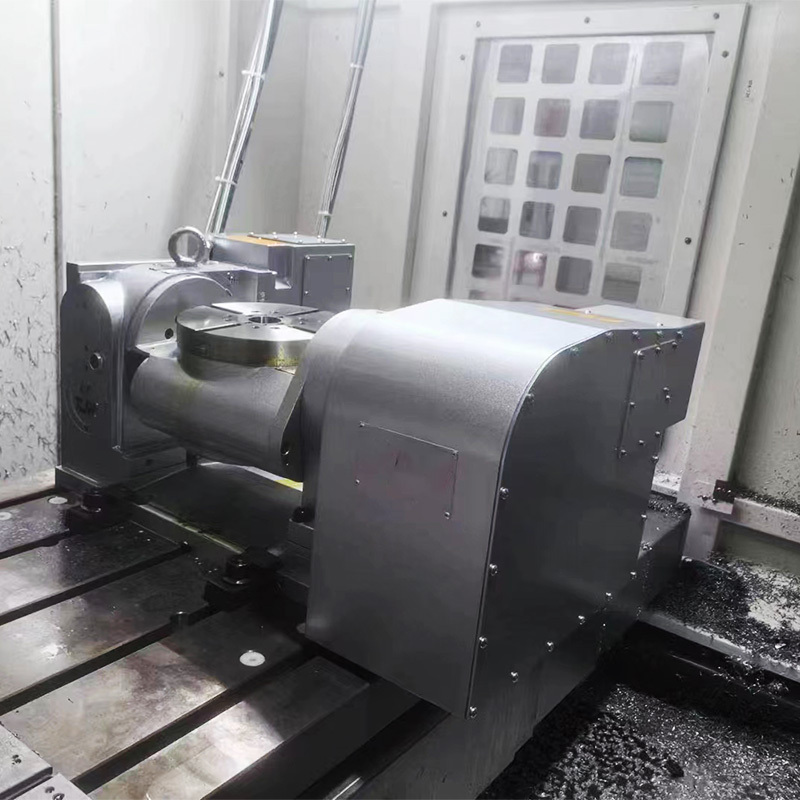

Item |
Unit |

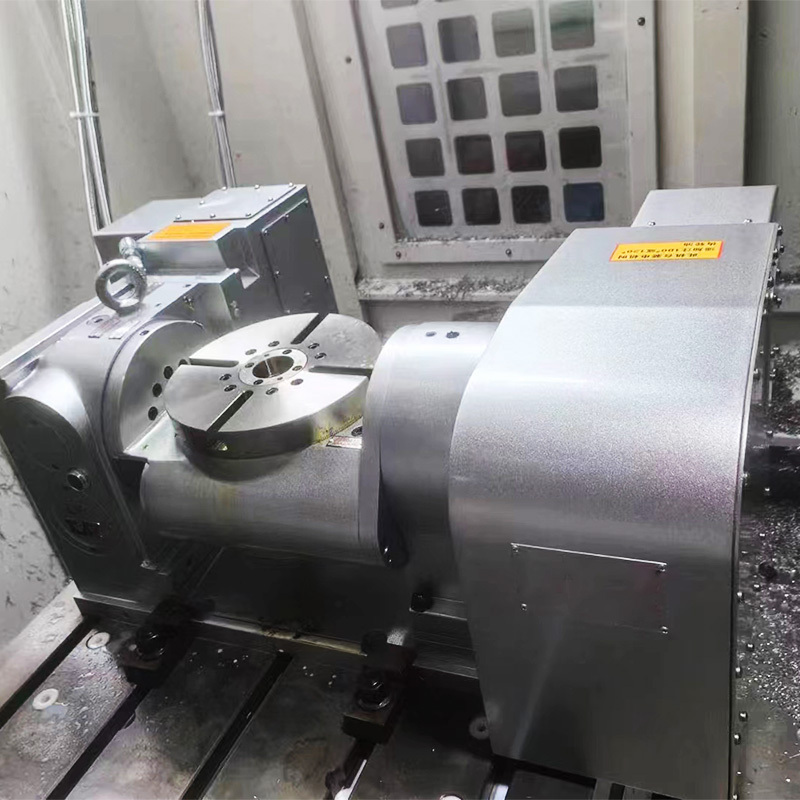

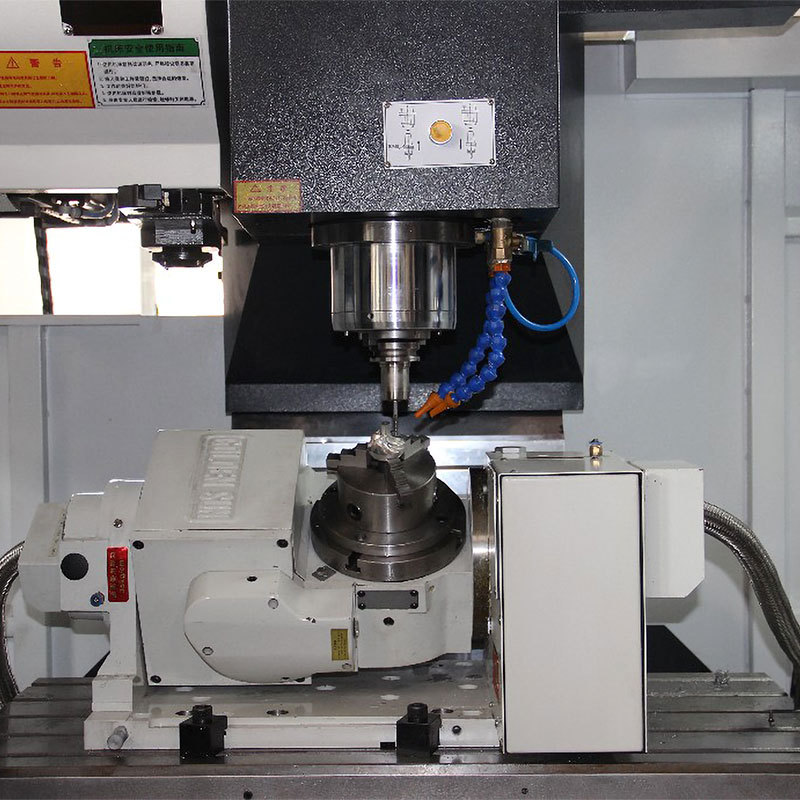

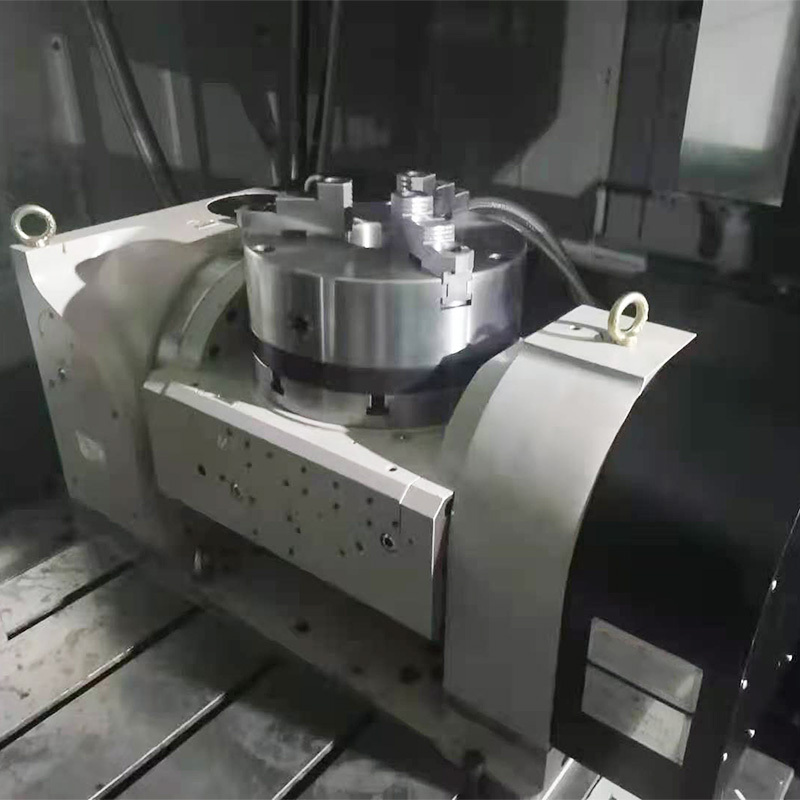

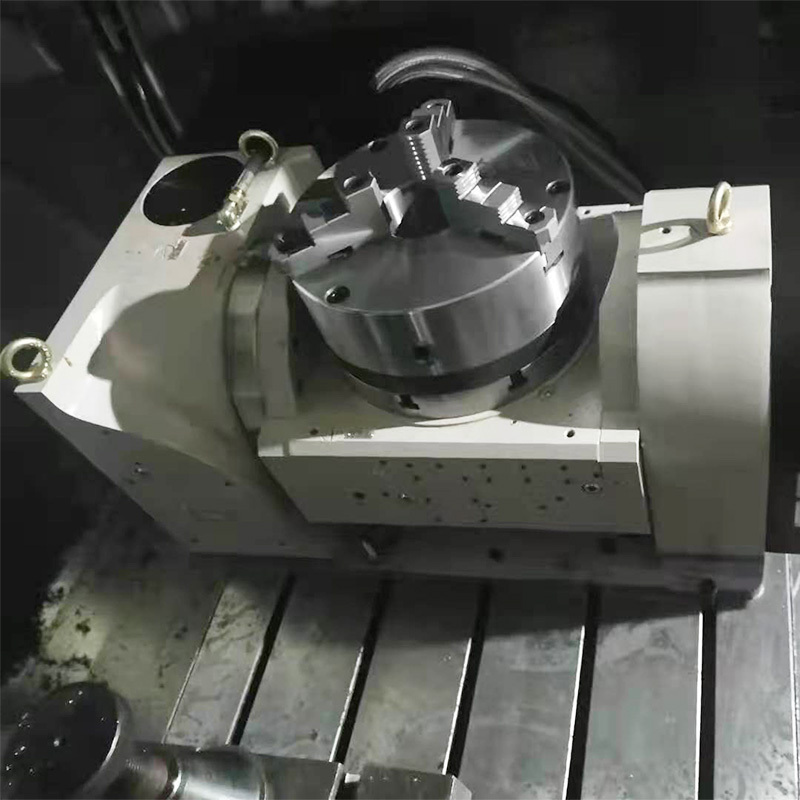

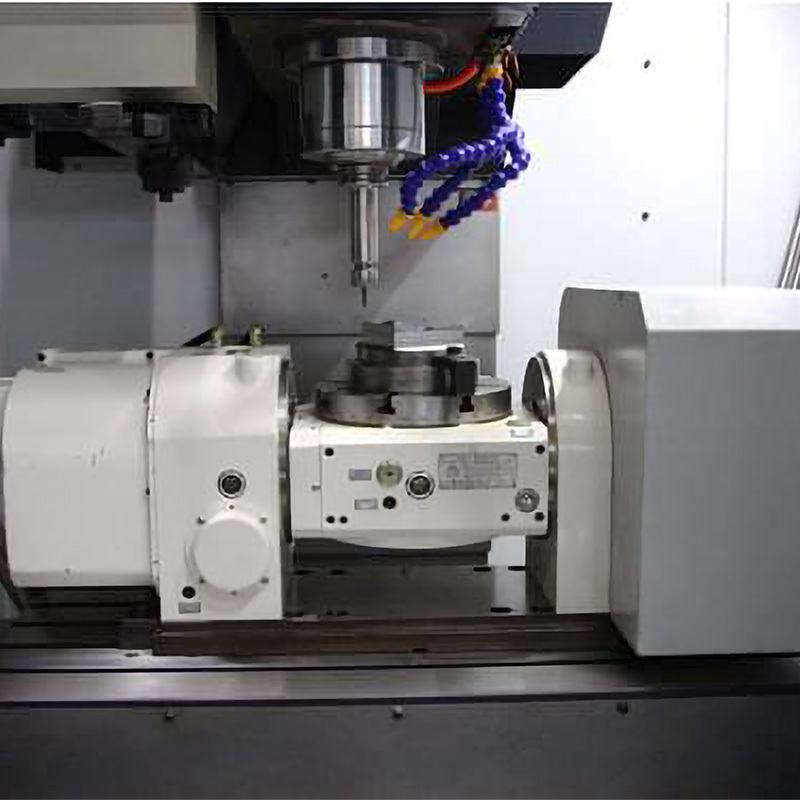

RK-V550L |

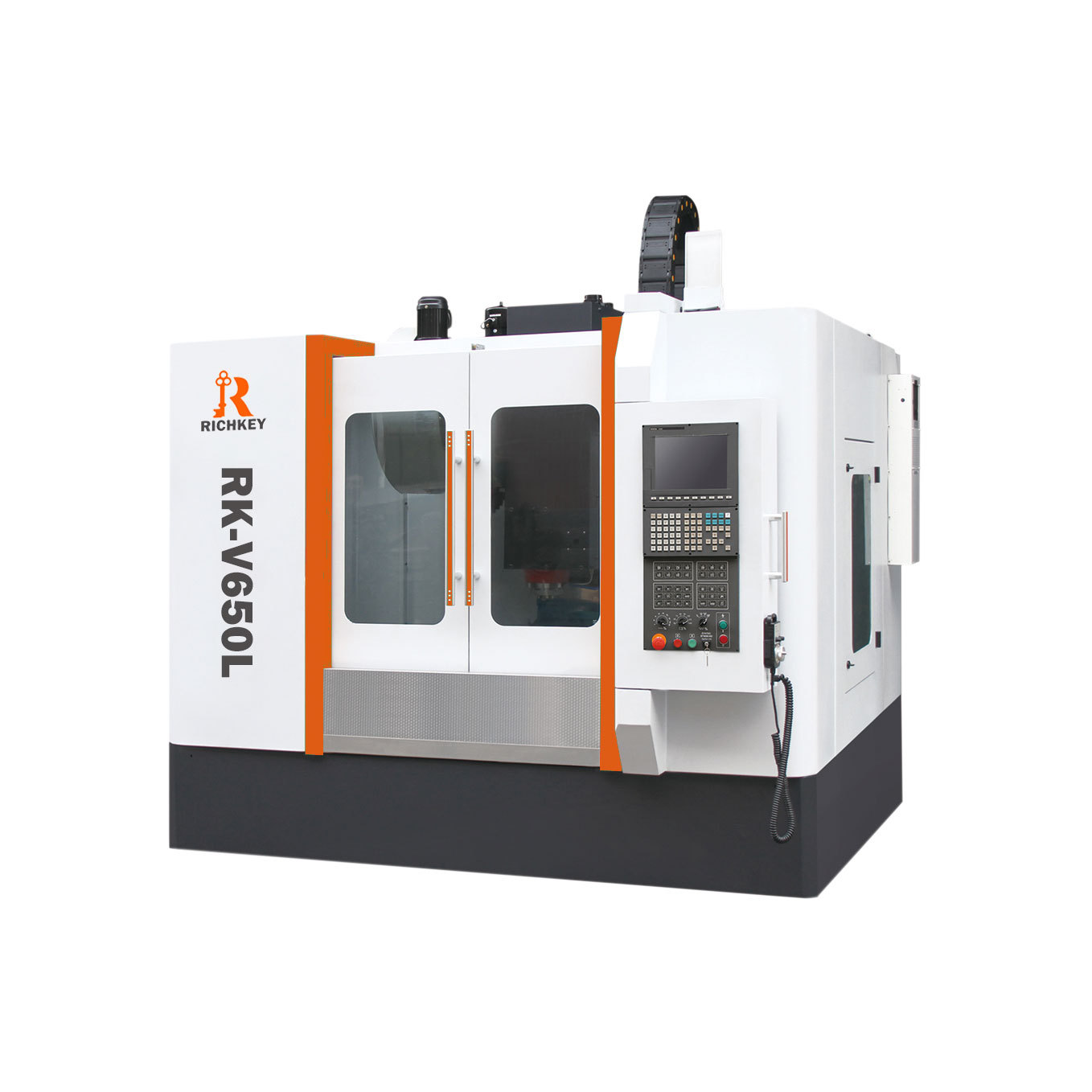

RK-V650L |
RK-V855L |

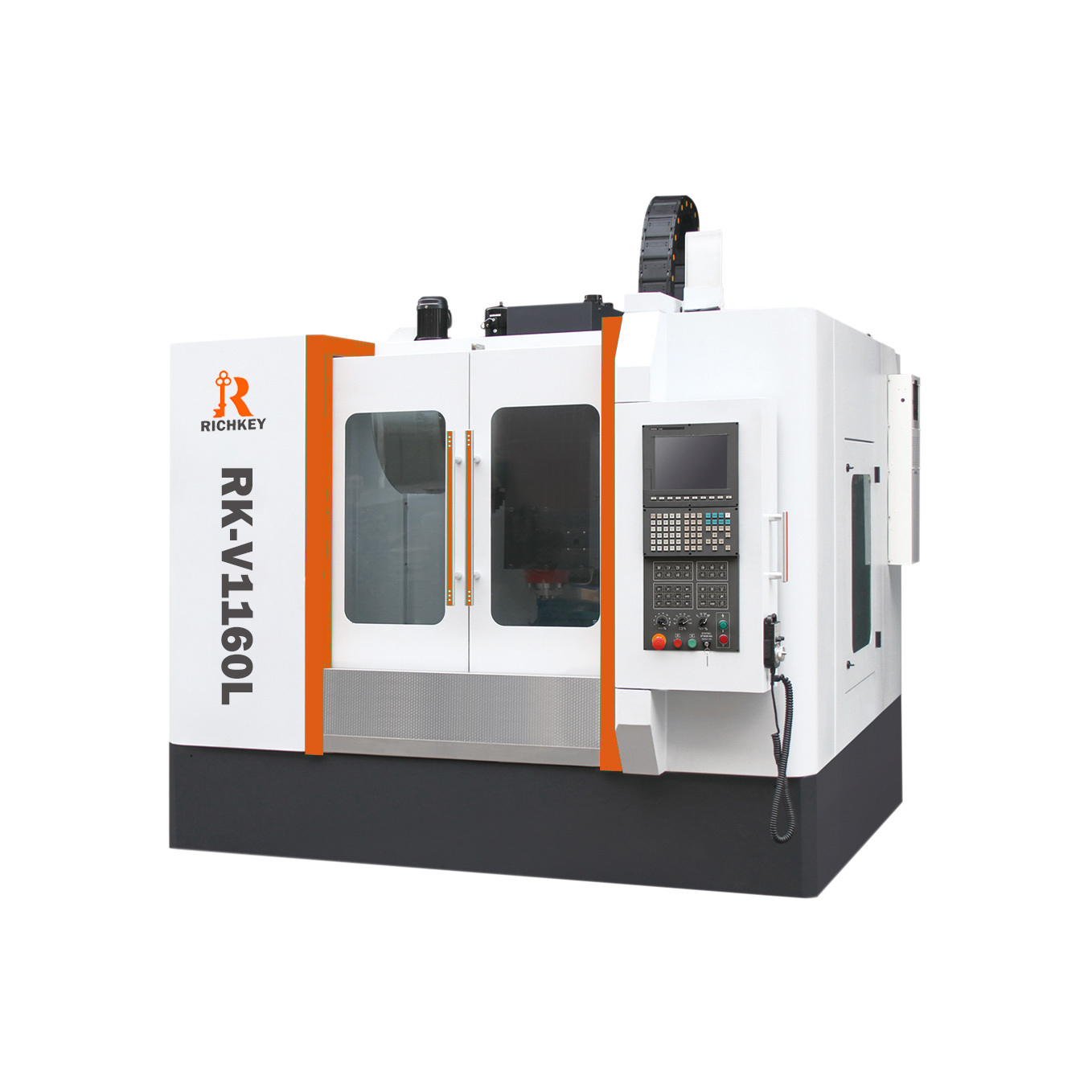

RK-V1160L |

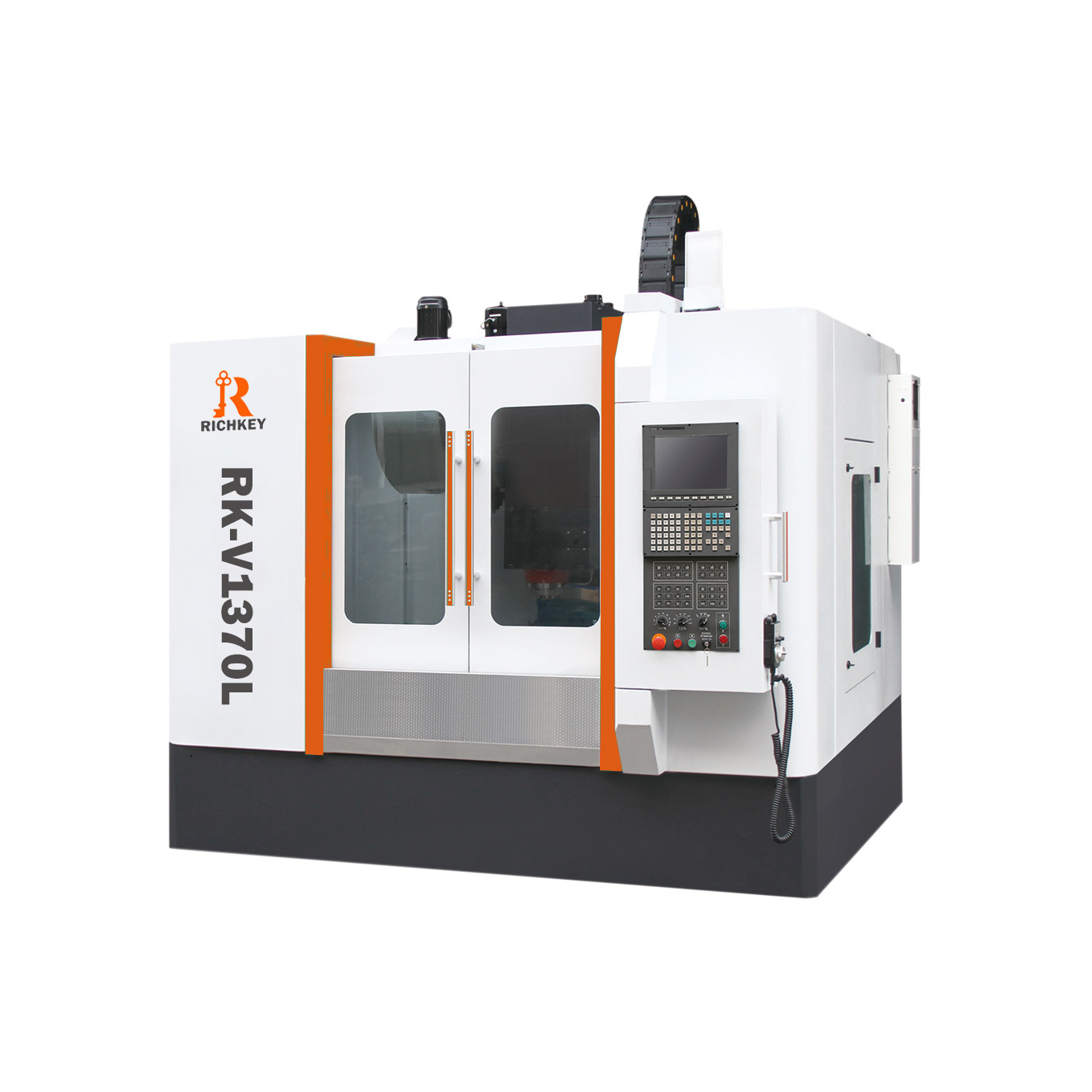

RK-V1370L |
|
X-axis Travel |
mm |
550 |
650 |
800 |
1100 |
1300 |
|
Y-axis Travel |
mm |
350 |
400 |
550 |
600 |
700 |
|
Z-axis Travel |
mm |
450 |
500 |
550 |
600 |
700 |
|
Spindle End to Work Table Distance |
mm |
100-550 |
100-600 |
120-670 |
120-720 |
120-820 |
|
Spindle Center to Z Guideway Plane |
mm |
425 |
476 |
595 |
650 |
750 |
|
Work table size |
mm |
800 x 350 |
800 x 400 |
1000 x 550 |
1200 x 600 |
1400 x 700 |
|
Maximum Bearing Weight |
kg |
300 |
400 |
500 |
800 |
1000 |
|
T Slot Type |
- |
3pcs, 18mm width |
3pcs, 18mm width |
5pcs, 18mm width |
5pcs, 18mm width |
5pcs, 18mm width |
|
T Slot Center Distance |
mm |
120 |
125 |
90 |
100 |
110 |
|
Spindle Drive Type |
- |
Belt/coupling |
Belt/coupling |
Belt/coupling |
Belt/coupling |
Belt/coupling |
|
Spindle Maximum Rotation Speed |
r/min |
8000/12000 |
8000/12000 |
8000/12000 |
8000/12000 |
8000/（6000） |
|
Spindle Taper Hole |
- |
BT40/φ120 |
BT40/φ120 |
BT40/φ150 |
BT40/φ150 |
BT40/BT50 |
|
Spindle Motor Power |
kw |
5.5 |
5.5 |
7.5 |
11 |
15 |
|

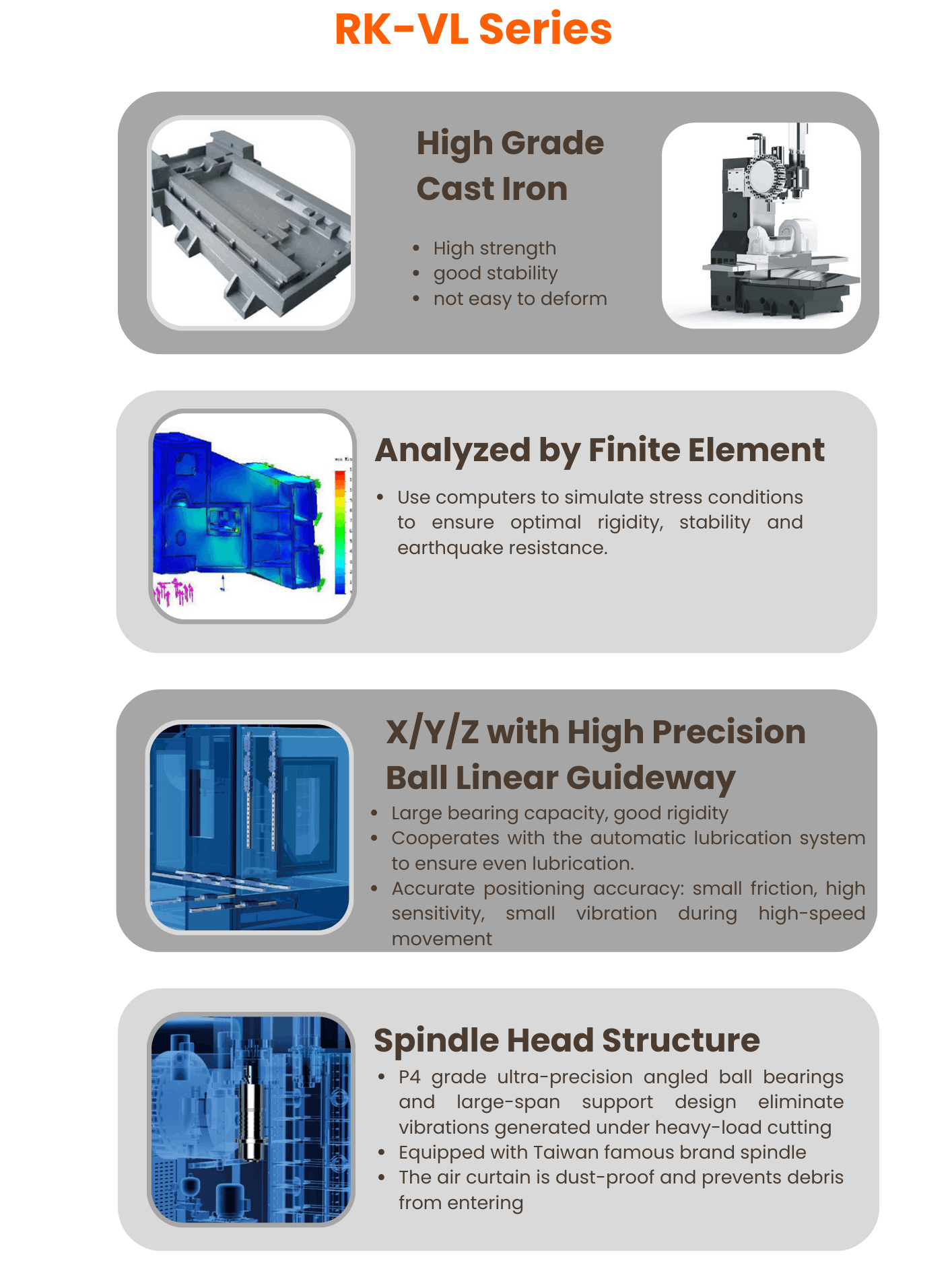

XYZ Guideway Type |
- |
Linear Guide |
Linear Guide |
Linear Guide |
Linear Guide |
Linear Guide |
|
X /Y Rapid Traverse |
m/min |
30 |
30 |
36 |
36 |
24 |
|
Z-axis Rapid Traverse |
m/min |
24 |
24 |
48 |
36 |
24 |
|
X /Y/Z Servo Motor Torque |
N.m |
6/6/7.5 |
7.5/7.5/7.5 |
11/11/20 |
20/20/20 |
24/24/24 |
|
Cutting Feed |
m/min |
1-10 |
1-10 |
1-10 |
1-10 |
1-10 |
|
Positioning Accuracy |
mm |
0.01/300 |
0.01/300 |
0.01/300 |
0.01/300 |
0.01/300 |
|
Repeated Positioning Accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
|

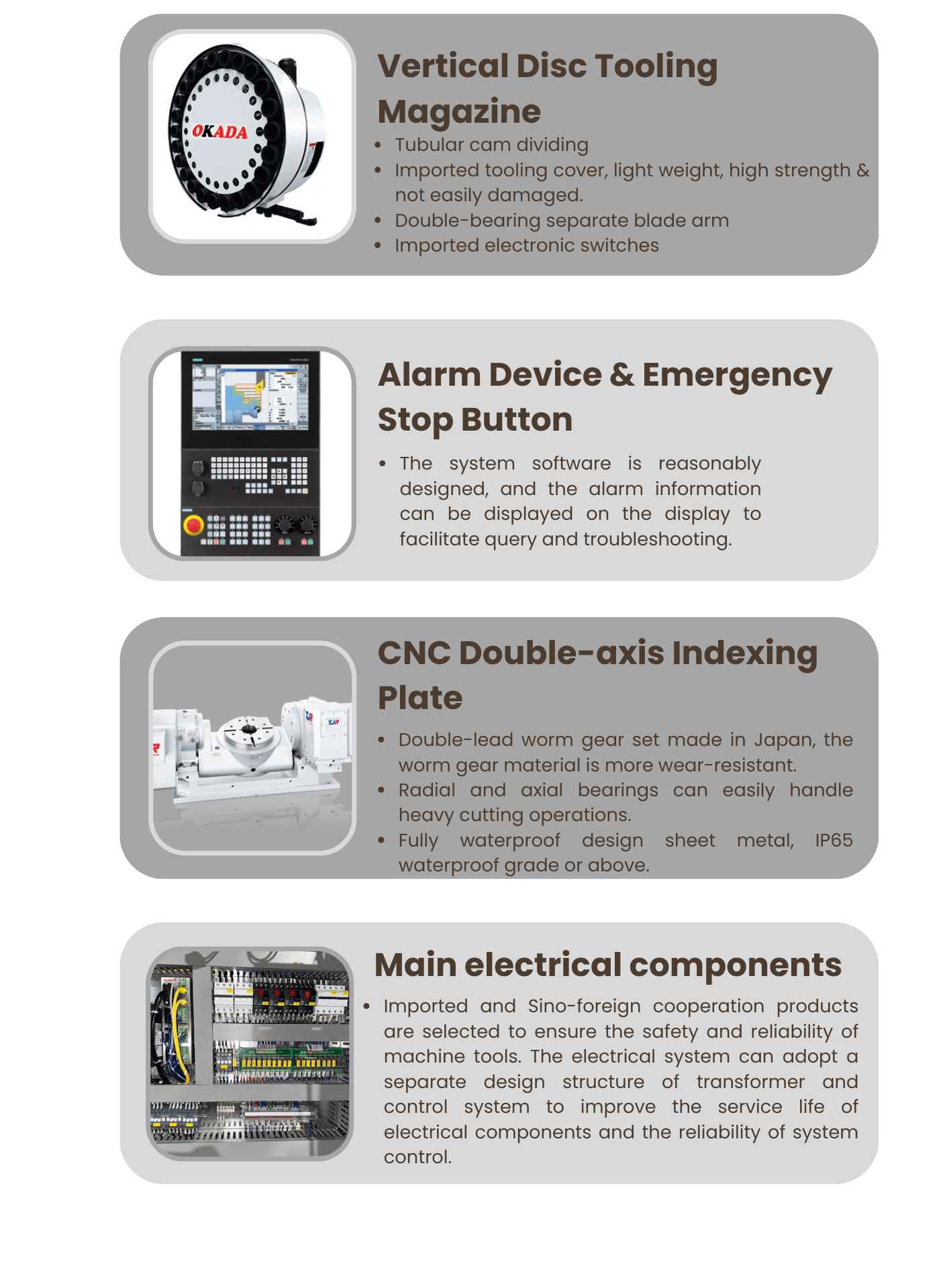

Tooling Magazine |
- |
16/20 |
16/20 |
16/20/24 |
20/24 |
20/24 |
|
Machine Weight |
kg |
2.7 |
3.2 |
5.5 |
7.5 |
8.8 |
|
Machine Size |
m |
2.2 x 1.7 x 2.3 |
2.2 x 1.7 x 2.3 |
2.8 x 2.3 x 2.3 |
3.3 x 2.6 x 2.8 |
3.7 x 3.0 x 3.1 |
