Model |
Unit |
RK-W 300 |
RK-W 400 |
RK-W 500 |
RK-W 800 |
|
Index |
|||||
|
Max. Efficiency |
mm²/min |
＞ 150 |
＞ 150 |
＞ 150 |
＞ 130 |
|
Best roughness (Ra) |
μm |
＜ 0.4 |
＜ 0.4 |
＜ 0.4 |
＜ 0.4 |
|
Best Cutting Accuracy (section) |
μm |
＜ ±2 |
＜ ±2 |
＜ ±2 |
＜ ±2 |
|
Parameter |
|||||
|
X/Y/Z Axes Travel |
mm |
300×250×250 |
400×260×250 |
500×350×250 |
800×500×250 |
|
U/V Axes Travel |
mm |
90×90 |
90×90 |
90×90 |
90×90 |
|
Motor of X/Y/U/V/Z |
|
X/Y AC servo U/V/Z stepper motor |
AC servo |
AC servo |
AC servo |
|
Cutting taper |
°/ mm |
±22.5 / 80 |
±22.5 / 80 |
±22.5 / 80 |
±22 / 80 |
|
Worktable dimension |
mm |
590×380 |
650×380 |
760×480 |
1070×730 |
|
Max. workpiece dimension（L×W×H） |
mm |
550×520×280 |
730×580×250 |
880×650×250 |
1000×700×250 |
|
Wire diameter |
mm |
Φ0.15-Φ0.3 |
Φ0.15-Φ0.3 |
Φ0.15-Φ0.3 |
Φ0.15-Φ0.3 |
|
CNC |
|||||
|
Operation system |
Windows 10 |
||||
|
Display |
21.5" LCD |
||||
|
CNC axes |
5 axes |
||||
|
Simultaneously Controlled Axes |
4 axes |
||||
|

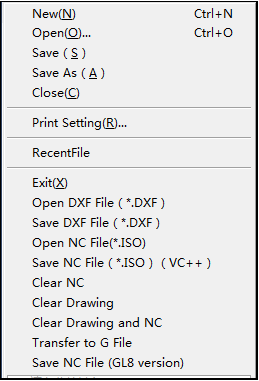

File format |
DXF |
||||
|
Input method |
keyboard, mouse, USB |
||||
|
Power |
|||||
|
Power Supply |
V/Hz |
380±10% / 50, 3-phase 5-cable |
|||
 |
Patented Energy Recycling Technology It adopts the design idea of inrush current recycling, recovers the excess energy in processing, and then converts it into processing energy again. It reduces energy consumption, as well as greatly prevents the components ageing in the electric cabinet due to the high temperature, which brings down the damage to the electrical system and other risks. It prolongs the service life of electric components and makes the machine more stable for long-term use.
|
 |
 |
|
|
 |
 |

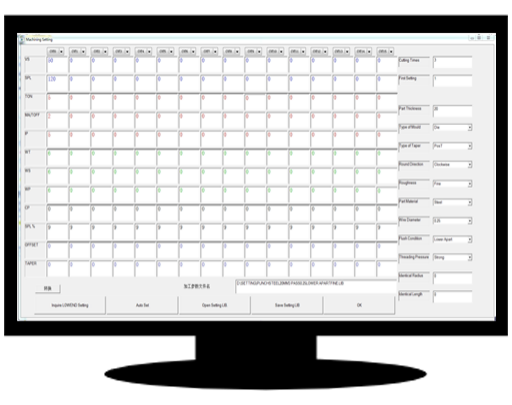

Complete Database Users without experience can easily process high-quality parts. Quickly Match Processing Parameters Only need to input the workpiece material, thickness, processing accuracy, roughness, etc.. 4 Flushing Conditions Ensure the fast erosion speed of complex workpiece. |
|

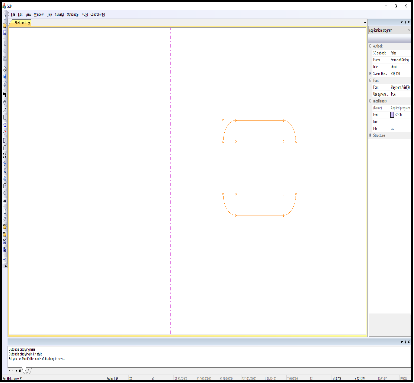

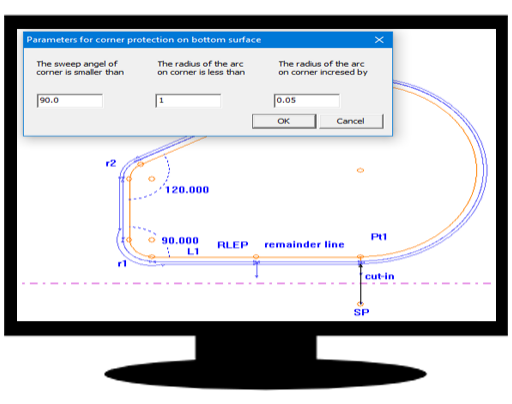

Multi-form Sharp Corner Processing Mode The unique sharp corner strategy of CAM software allows users to match its function according to the type of sharp corners of parts, which solves the accuracy problem of sharp corners in processing molds, especially the height over 50mm. |
|
 |
 |
 |

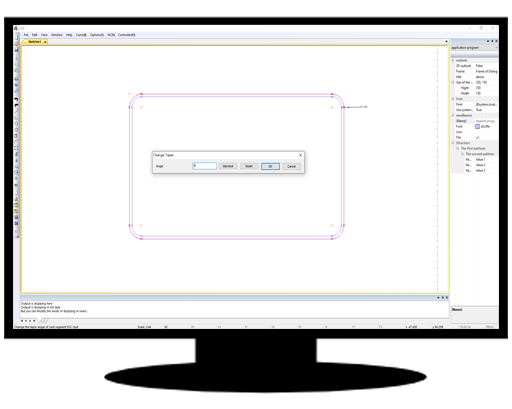

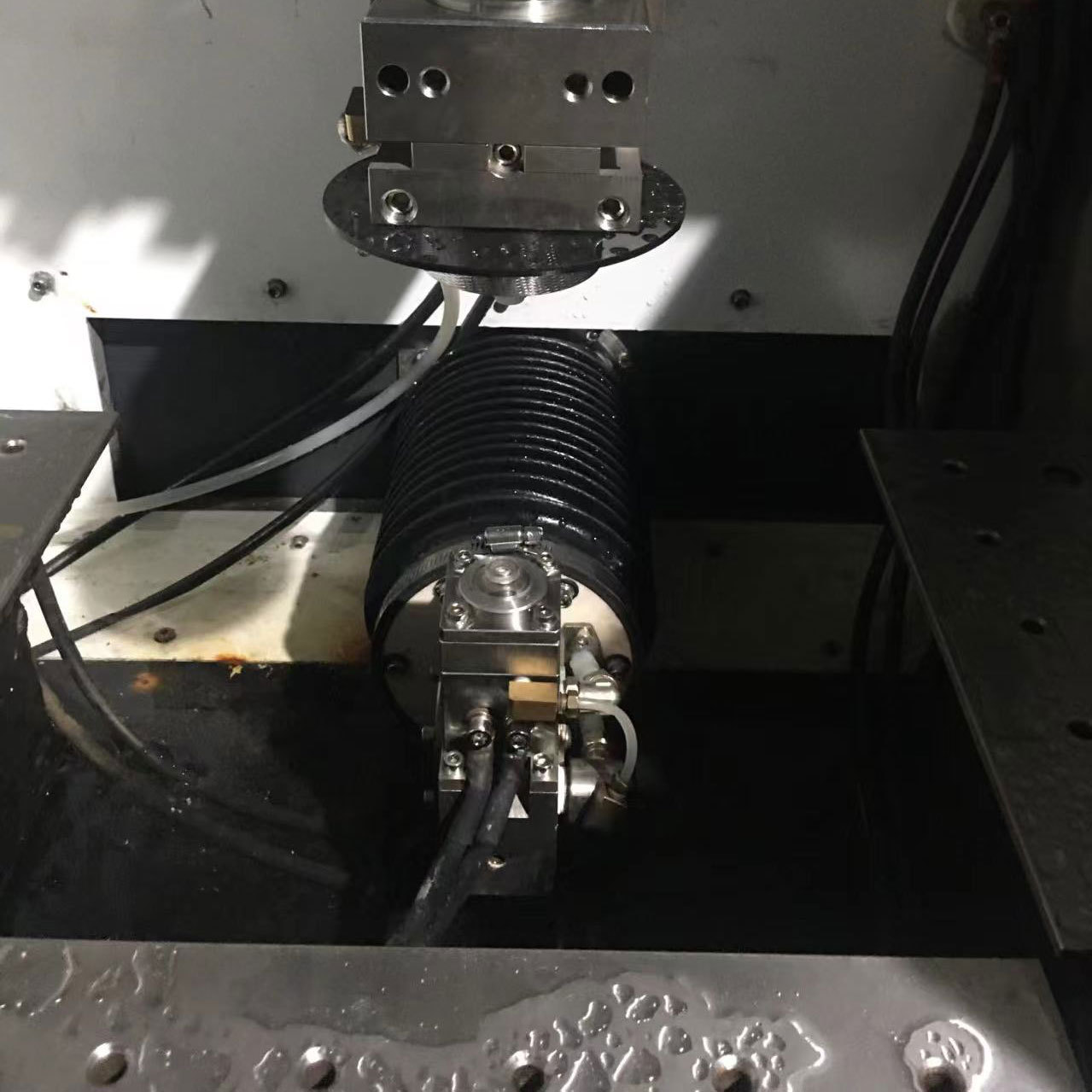

Variable Taper Processing Technology To meet the different taper of different parts, select the corresponding contour line in the variable taper function, variable taper cutting realizes easily.
|

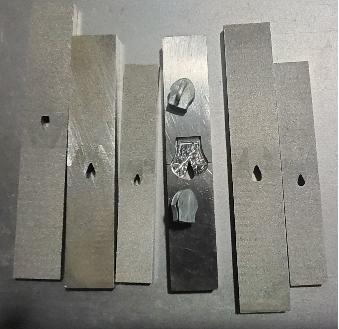

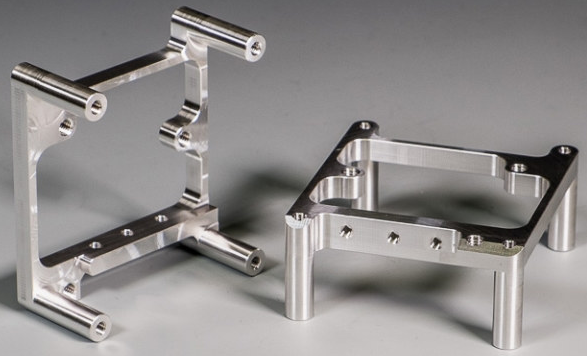

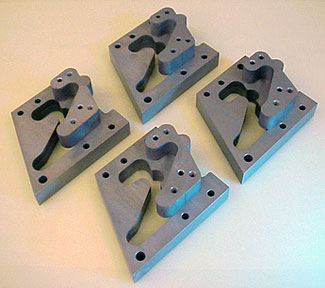

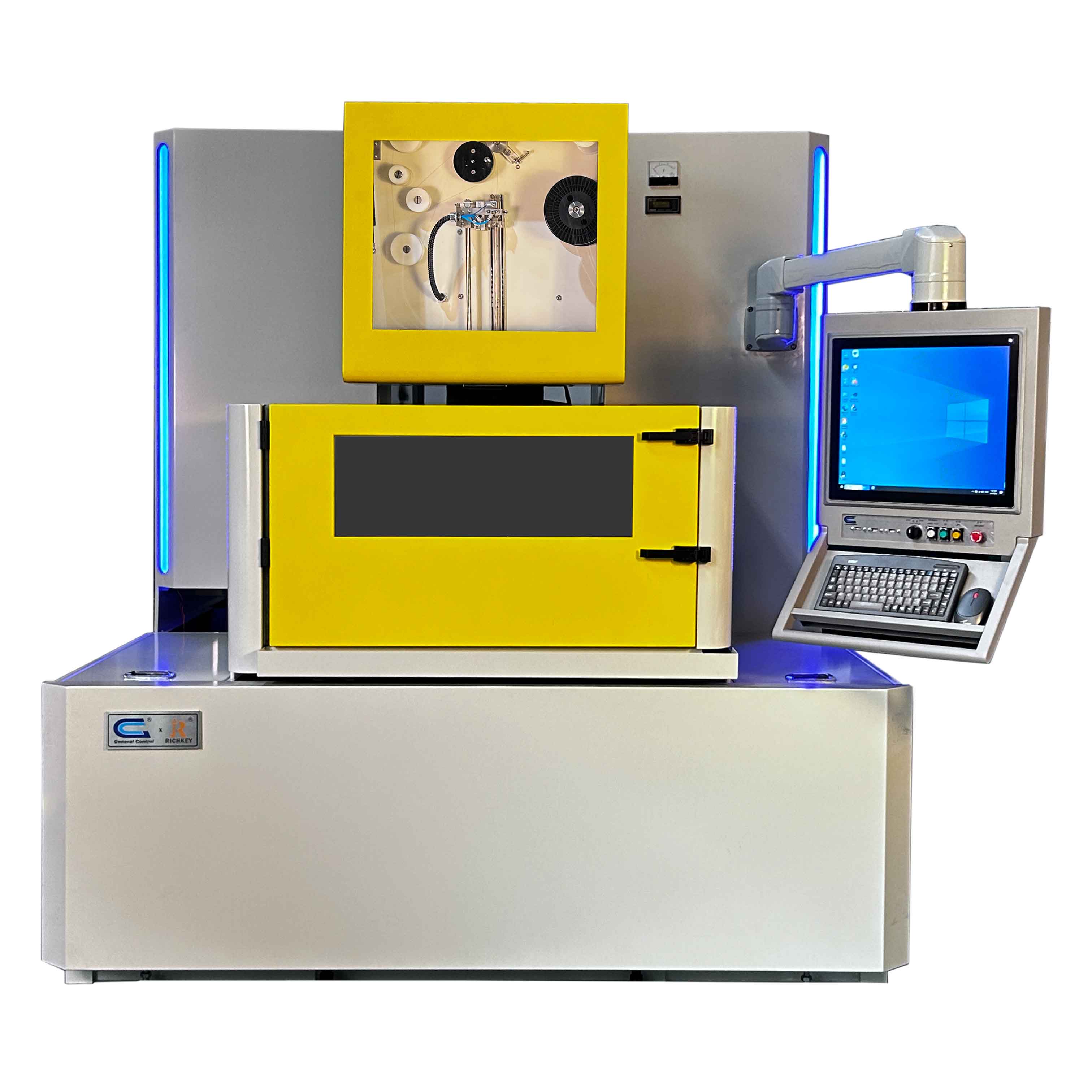

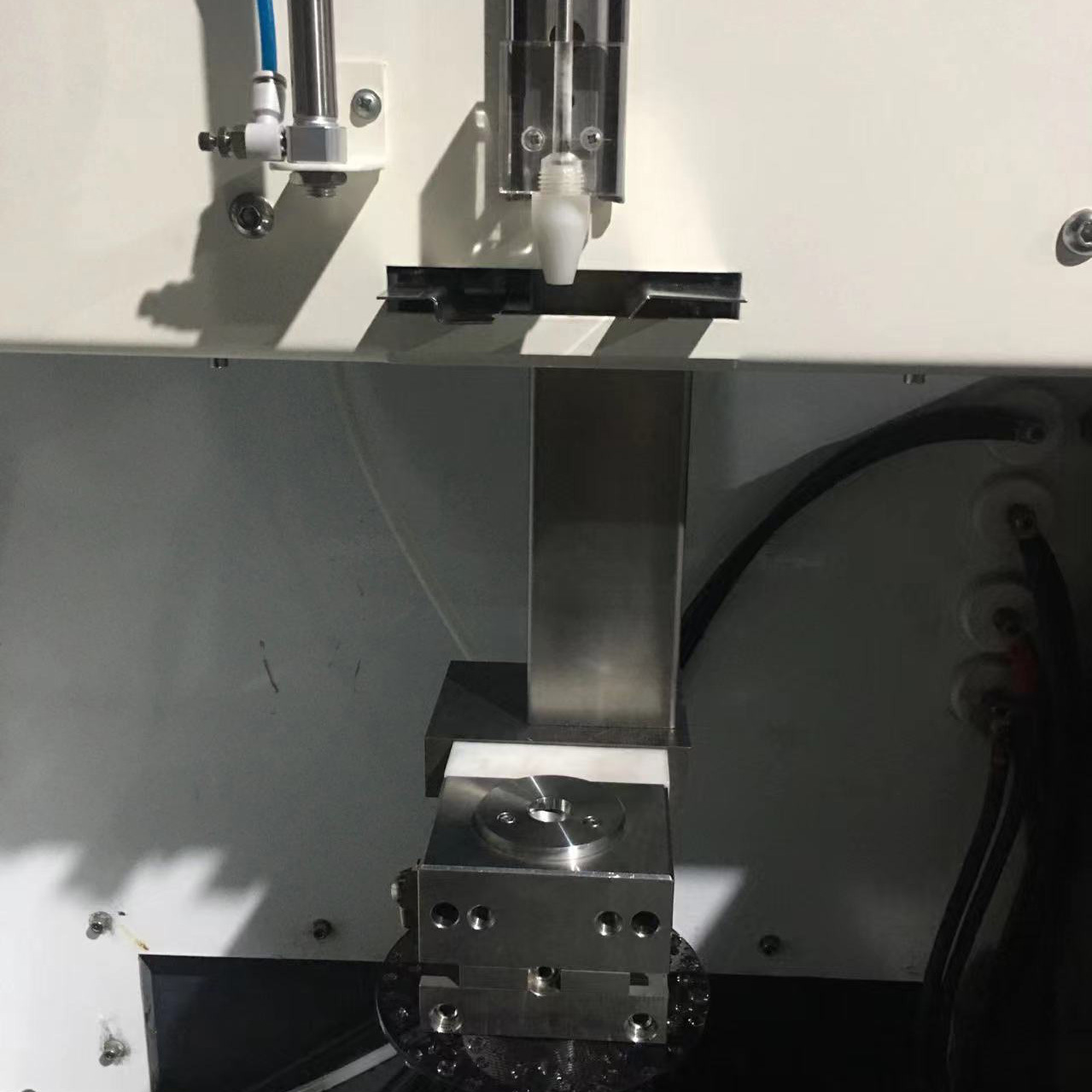

RK-W series brass wire cut is extensively used for various dies, plastic molds, powder metallurgy and other molds and parts. It can also perform micro-processing, special-shaped grooves, and non-standard test pieces, widely used in electronic instruments, precision machine tools, light industry, military industry, etc.
 |
 |
 |
 |
 |
 |
