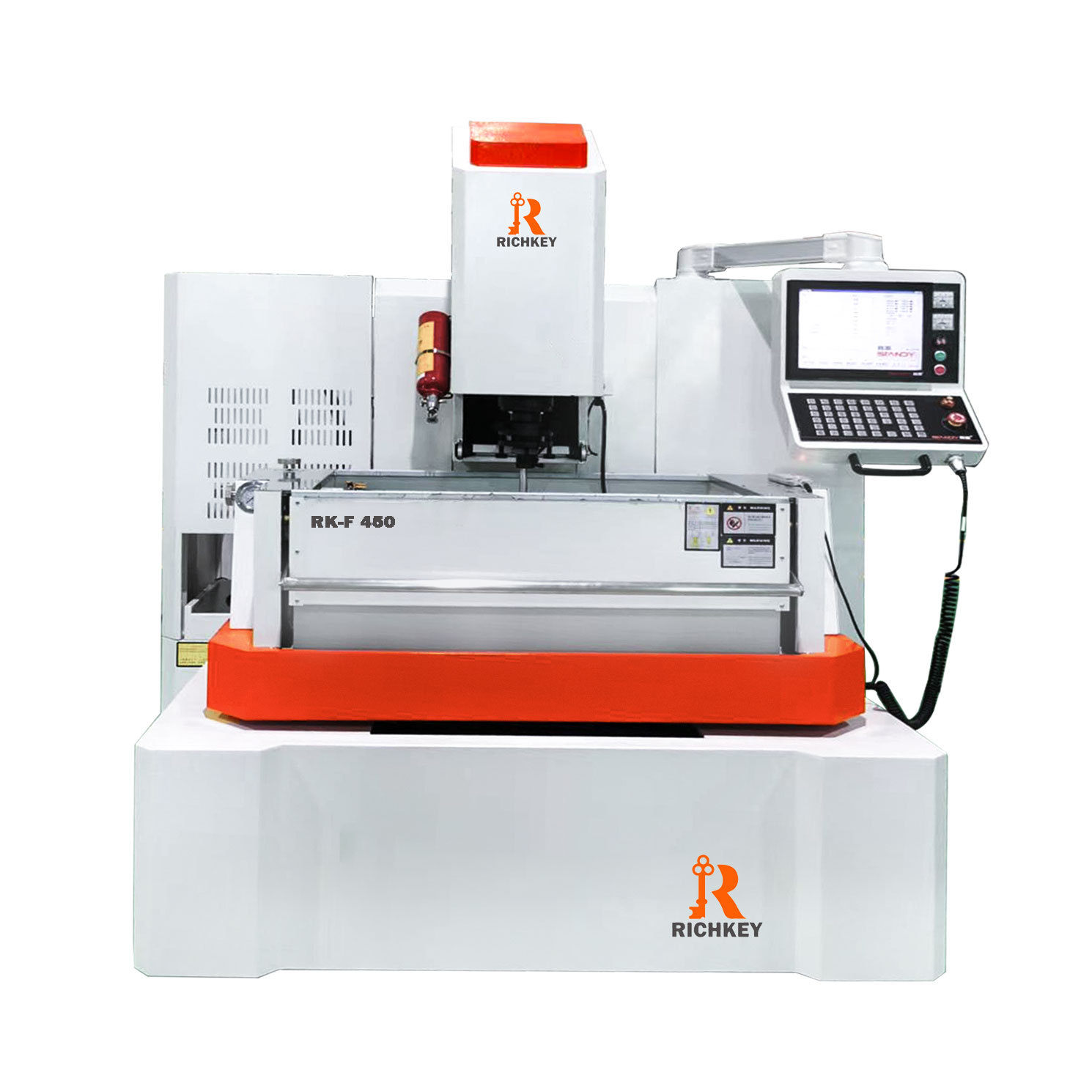

No.1 - Mirror Machining
As the high-end for mold workshops, it adopts special mirror machining circuit with powderless mirror machining, and features ultra-precise surface, high mirror, ultra-precise edge, super clear angel and effective machining. The cutting lifting speed of the main axis reaches 10m/min, and the high speed cutter lifting is capable of effectively removing impurity, achieving effective and stable discharge as well as high quality surface.
No.2 Graphite Machining
As the effective model for mold workshops, it adopts special graphite machining circuit with the high-speed coarse machining 3 times faster than copper, and high-speed finish machining 5times faster than copper. The product features machinability, and is capable of achieving complicated geometric shape with light weight, its density is less than 1/4 of copper, which is easy for clamping with electrode, and can reduce the number of single electrodes since they can be bundled ias the combined electrode.
No. 3 Hard Alloy Machining
As the high-end model for mold workshops, it adopts special hard alloy machining circuit with crackles and ultra-high machining, and features ultra-precise machining and low electrode consumption, the bottom of single structure is made of high grade casting iron without deformation, and is suitable for machining molds of high precision.
 |
 |
 |
 |
|
Discharge centered function Convenient for electrode to separate the workpiece without causing burr. |
Pitch function Improving the speed and accuracy of programming, it is clear when observing by the operator, which is convenient for machining the multi-position mold as displacement data. |
Filed saving function Convenient for machining multiple molds and trimming mold. |
Automatic programming function Quick and accurate programming, avoiding mistake. |
 |
 |
|
Voltage Stabilizer |
High performance oil temperature control device |
|
|
|
|
Caxis |
Tooling storge-4T/ 8T/ 12T |
 |
||
| Graphite Electrode Machining | ||
| Machining Position | Round rib | Deep rib |
| Electrode | Graphite | Graphite |
| Machining Depth | 11.84mm | 43.84mm |
| Size | 75*66*35mm | 68*43*70mm |
| Machining Time |
3h8min (Rough) 2h15min (Fine) |
7h15min (Rough) 4h (Fine) |
| Surface Roughness |
Ra4.5 (Rough) Ra1.0(Fine) |
Ra4.5 (Rough) Ra1.0(Fine) |
 |
||
| Graphite Deep Cavity Rib Machining | ||
| Machining Position | Long rib | Short rib |
| Electrode | Graphite | Graphite |
| Machining Depth | 40mm | 20mm |
| Size | 29*2*45mm | 20*1*25mm |
| Machining Time | 5h10min | 1h10min |
| Surface Roughness | VDI#21 texture | |
| Technology | Round Deep Cavity Mirror Machining | Square Deep Cavity Mirror Machining | Deep Cavity Mirror Machining |
| Electrode | Cooper | Cooper | Cooper |
| Workpiece | S136H | S136H | S136H |
| Size | φ40 S=1256mm- | 40*40*8mm | 80*10*6mm |
| Machining Time | 4h5min | 6h | 4h |
| Surface Roughness | VDI=Ra 0.1 | VDI=Ra 0.1 | VDI=Ra 0.1 |
 |
|||
| Spectacle Frame & Rear Film Mirror Machining | |
| Electrode | Cooper |
| Workpiece | S136H |
| Size | 130*40mm- |
| Machining Time | 10h / 12h |
| Surface Roughness | Ra 0.1 |
 |
|
 |
|
| Graphite Electrode | |
| Diameter | 290*195mm |
| Machining Time | 24h |
| Surface Roughness | VDI #125 TEXTURE |
 |
|
| Graphite Electrode | |
| Diameter | 398mm |
| Machining Time | 39h |
| Surface Roughness | VDI #25 TEXTURE |
|
Item |
Unit |

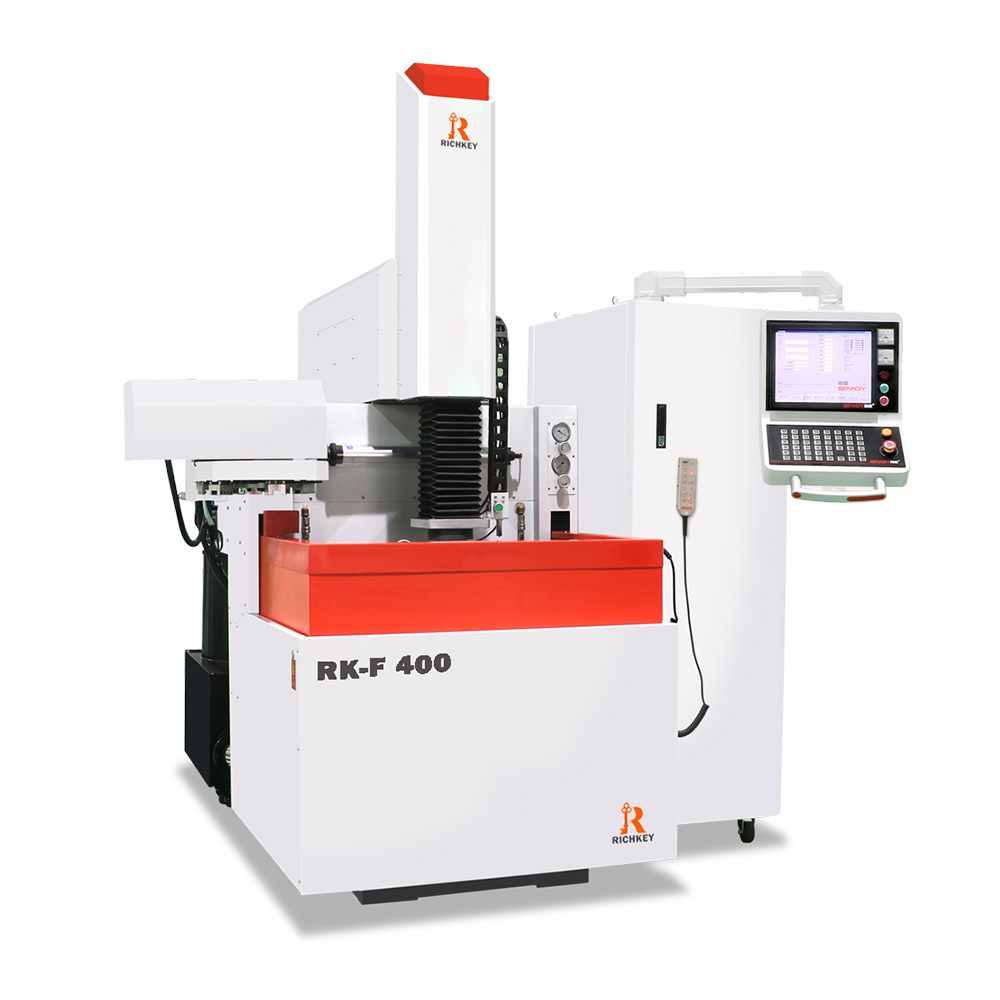

RK-F 400 |

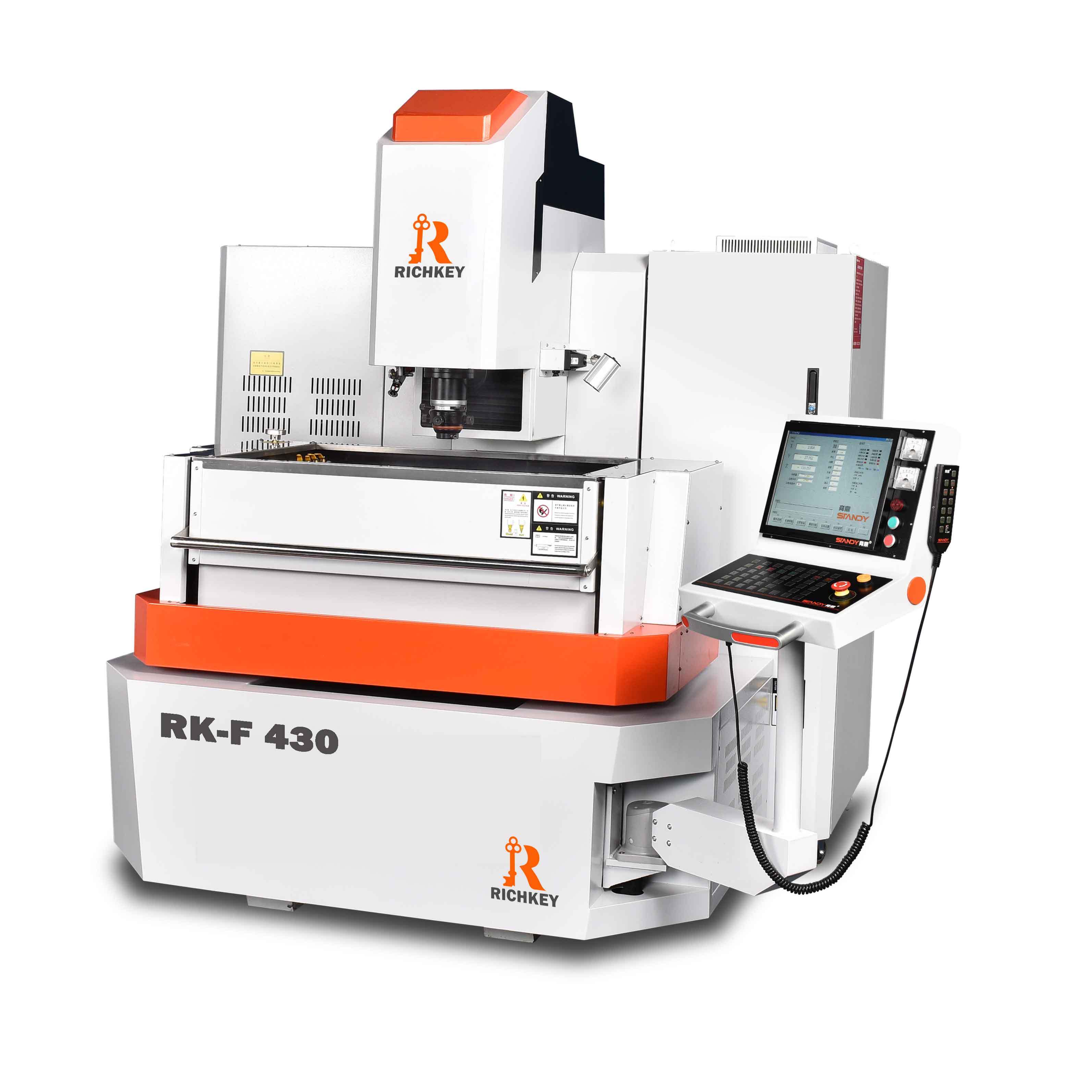

RK-F 430 |

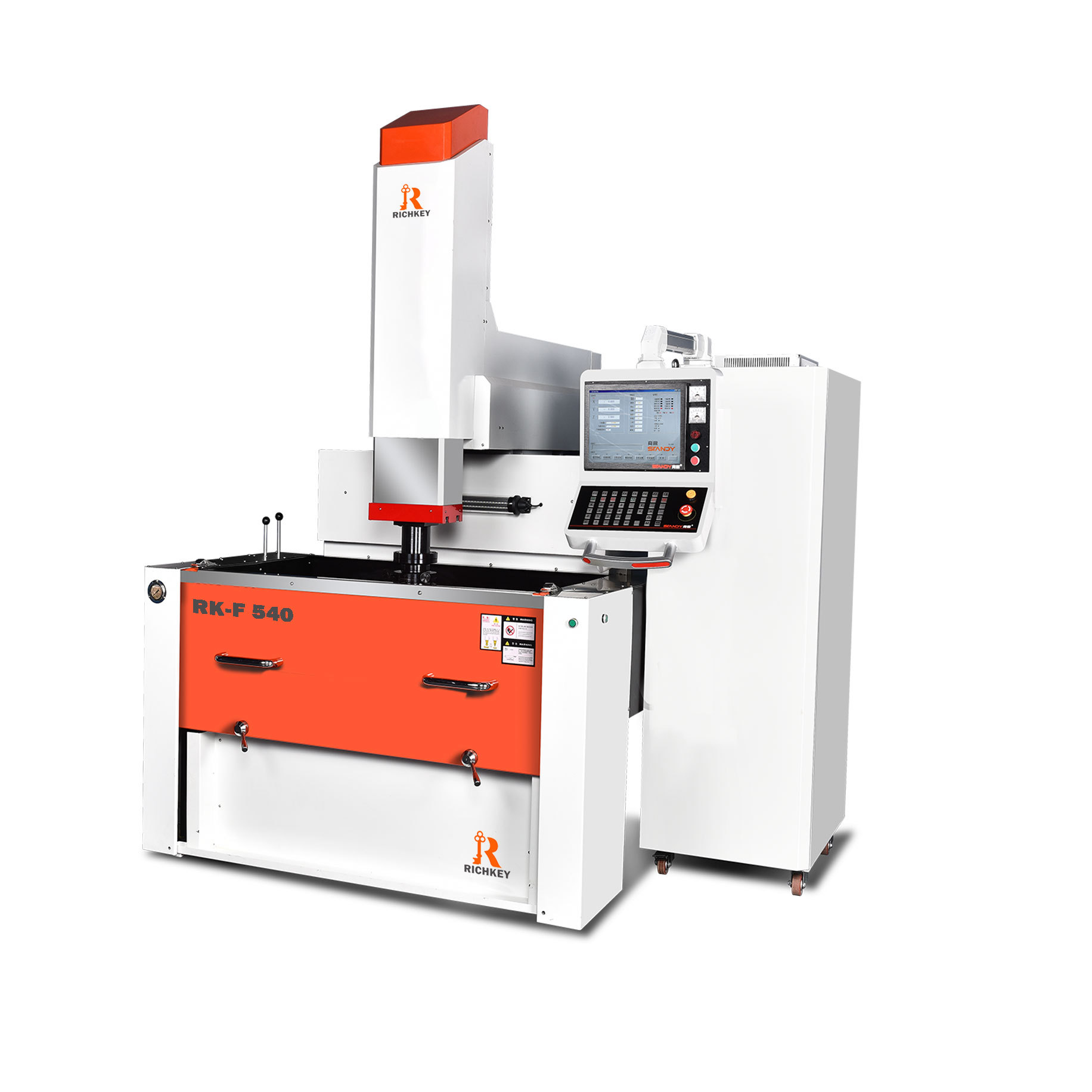

RK-F 540 |

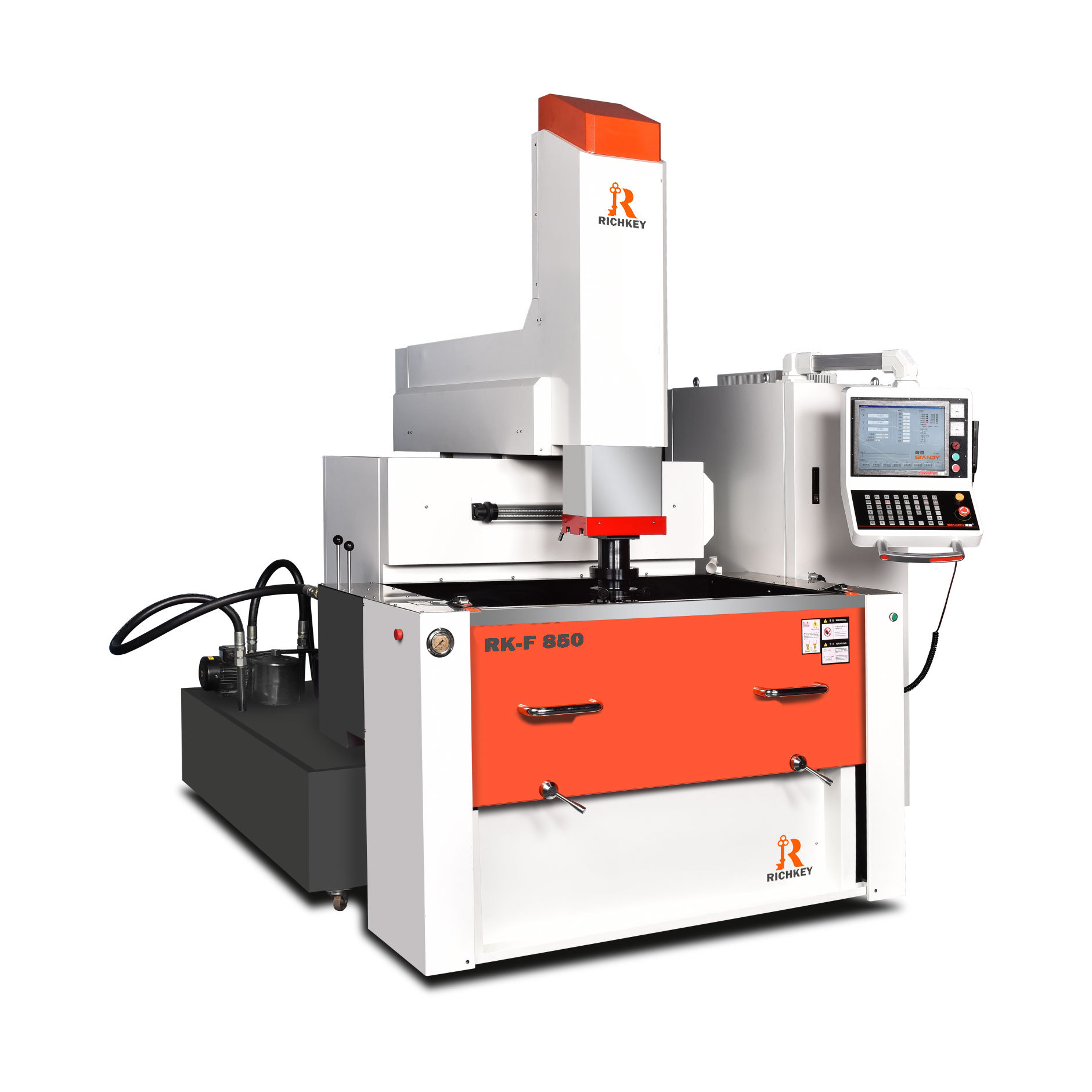

RK-F 850 |

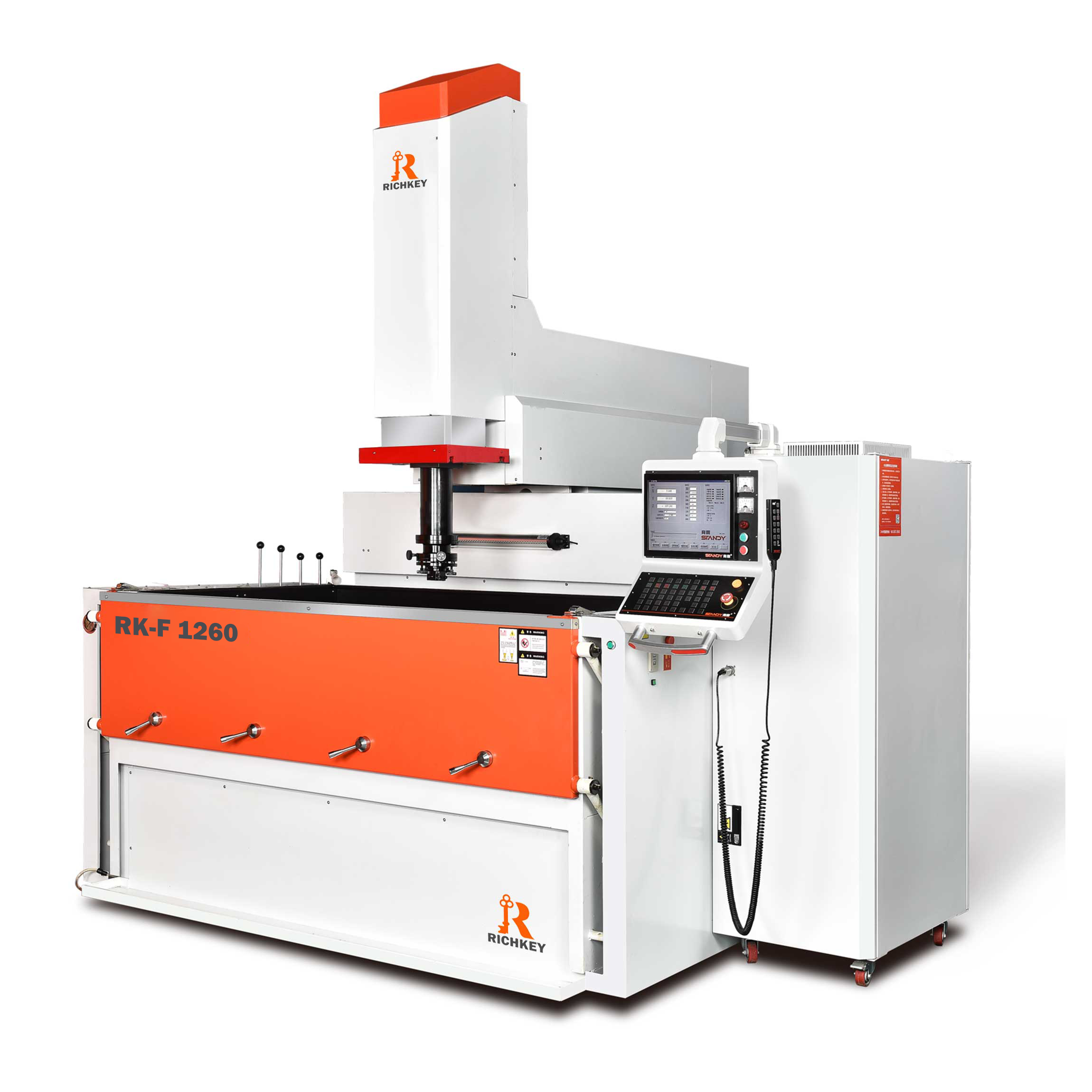

RK-F 1260 |
|
Work Table Dimension |
mm |
600*500 |
700*400 |
850*500 |
1050*600 |
1250*800 |
|
X/Y/Z Travel |
mm |
400*300*300 |
450*350*300 |
500*400*300 |
800*500*400 |
1200*600*450 |
|
Work Tank Internal Dimensions |
mm |
930*710*300 |
1000*600*390 |
1370*800*450 |
1800*1100*600 |
2000*1300*700 |
|
Distance from Electrode Plate to Table Top |
mm |
260-570 |
400-700 |
450-750 |
500-900 |
550-1000 |
|
Maximum Electrode Weight |
kg |
50 |
50 |
150 |
200 |
300 |
|
Maximum Workpiece Weight |
kg |
400 |
500 |
1800 |
3000 |
3500 |
|
Machine Dimensions |
mm |
2170*1730*2600 |
1980*2030*2250 |
2500*2400*2800 |
2900*2900*3000 |
3530*3400*3370 |
|
Total Machine Weight |
kg |
3000 |
3000 |
3500 |
5000 |
5500 |
|
Water Tank Capacity |
L |
320 |
440 |
600 |
1200 |
1200 |
|
Max Working Current |
A |
66 |
44 |
66 |
66 |
66 |
|
Work Tank Type |
|
Automatically |
Manually |
|||
|
Input Power |
|
380V, 3-phase, 50HZ |
||||
|
Positioning Accuracy |
mm |
≤0.005 |
||||
|
Repeat Positioning Accuracy |
mm |
±0.005 |
||||
|
Working Efficiency |
mm²/min |
≥500mm3/min (Graphite / steel) ≥400mm3/min (Copper /steel) |
||||
|
Best Roughness |
μm |
Ra≤0.1μm |
||||
|
Minimum Electrode Loss |
% |
≤0.1 |
||||
|
Resolution of Each Axis |
μm |
1 |
||||
|
Minimum Drive Unit |
μm |
1 |
||||
|
Axis CNC Control Number |
|
3 axes linkage, Optional 4-axis linkage |
||||
|
Interpolation Methods |
|
3-dimensional linear interpolation, 2-dimensional circular interpolation |
||||
|
Compensation of Each Axis |
|
Vertical and horizontal gap compensation, electrode radius compensation, positioning error compensation |
||||
