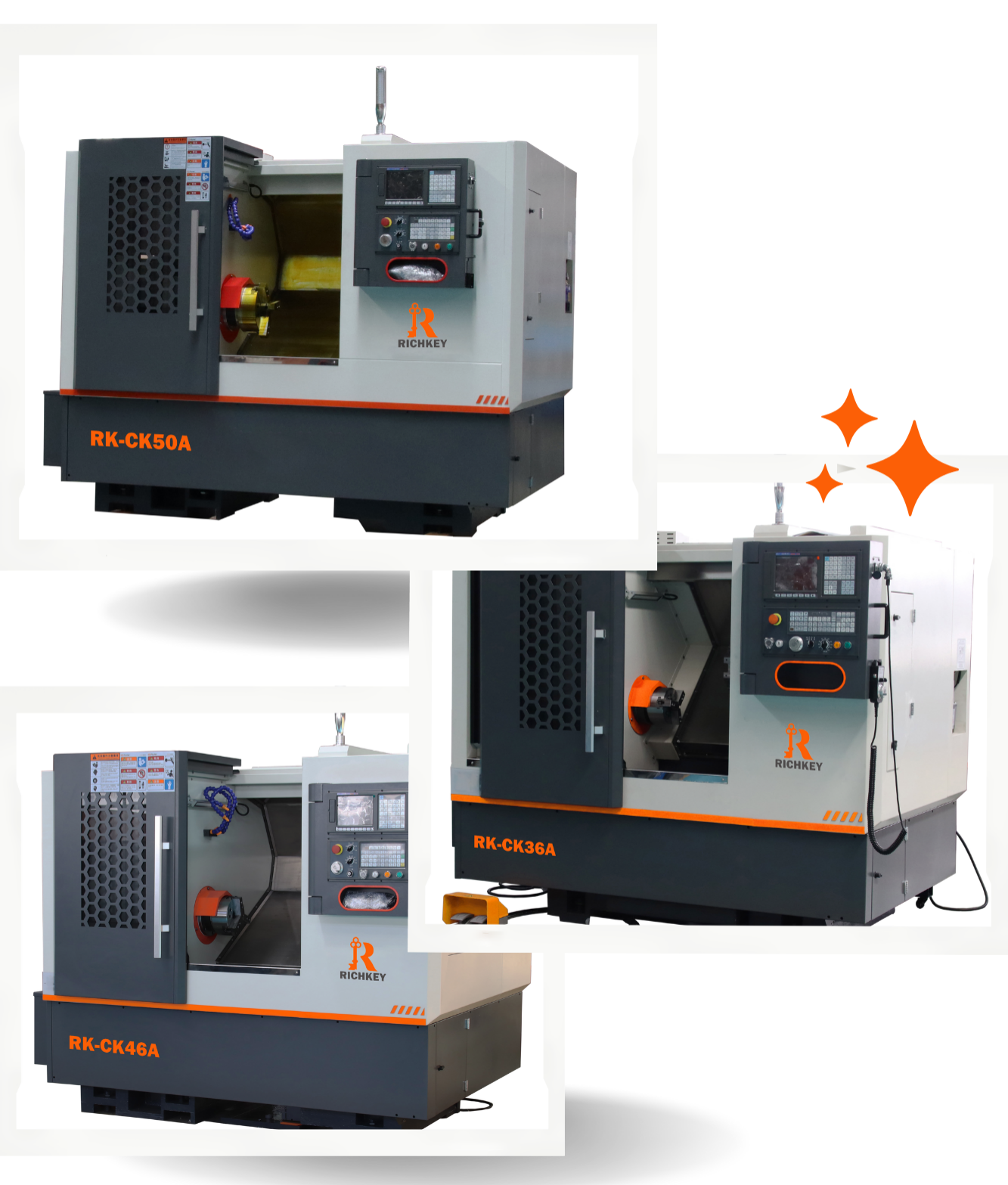

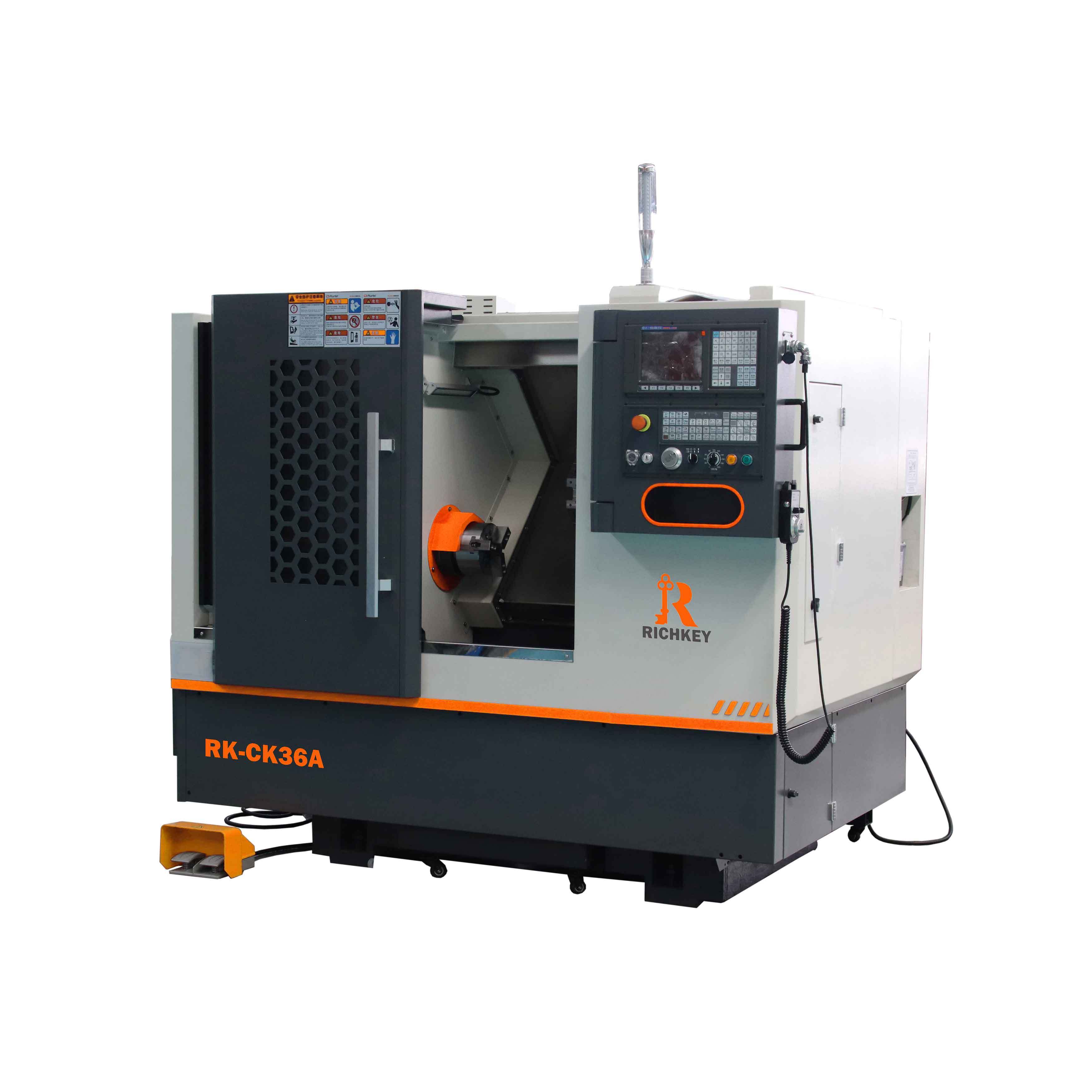

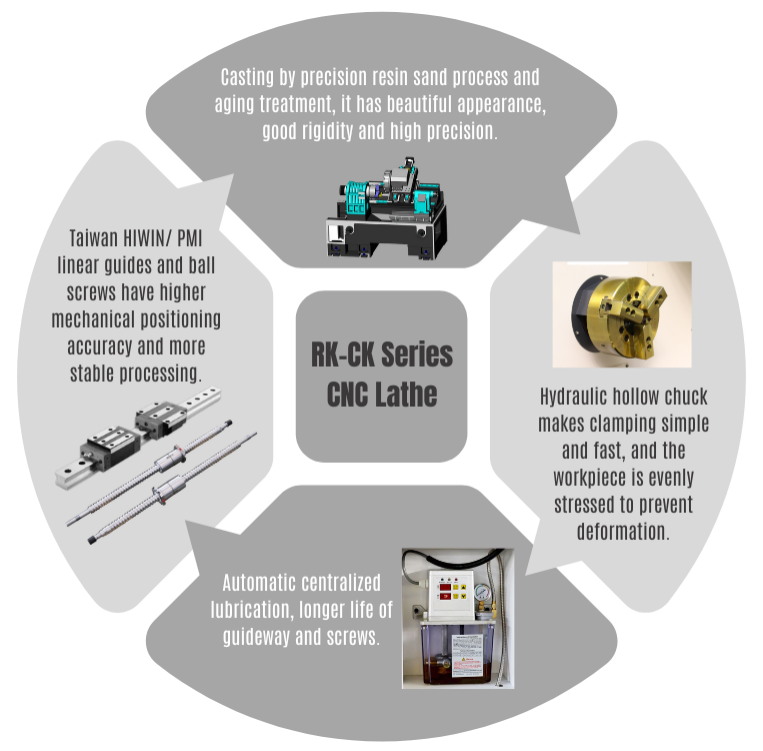

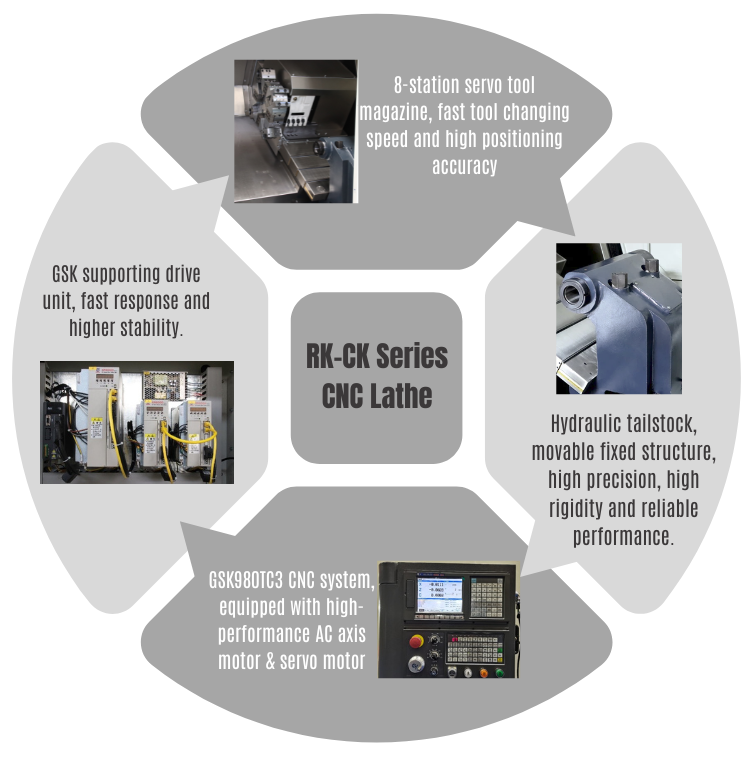

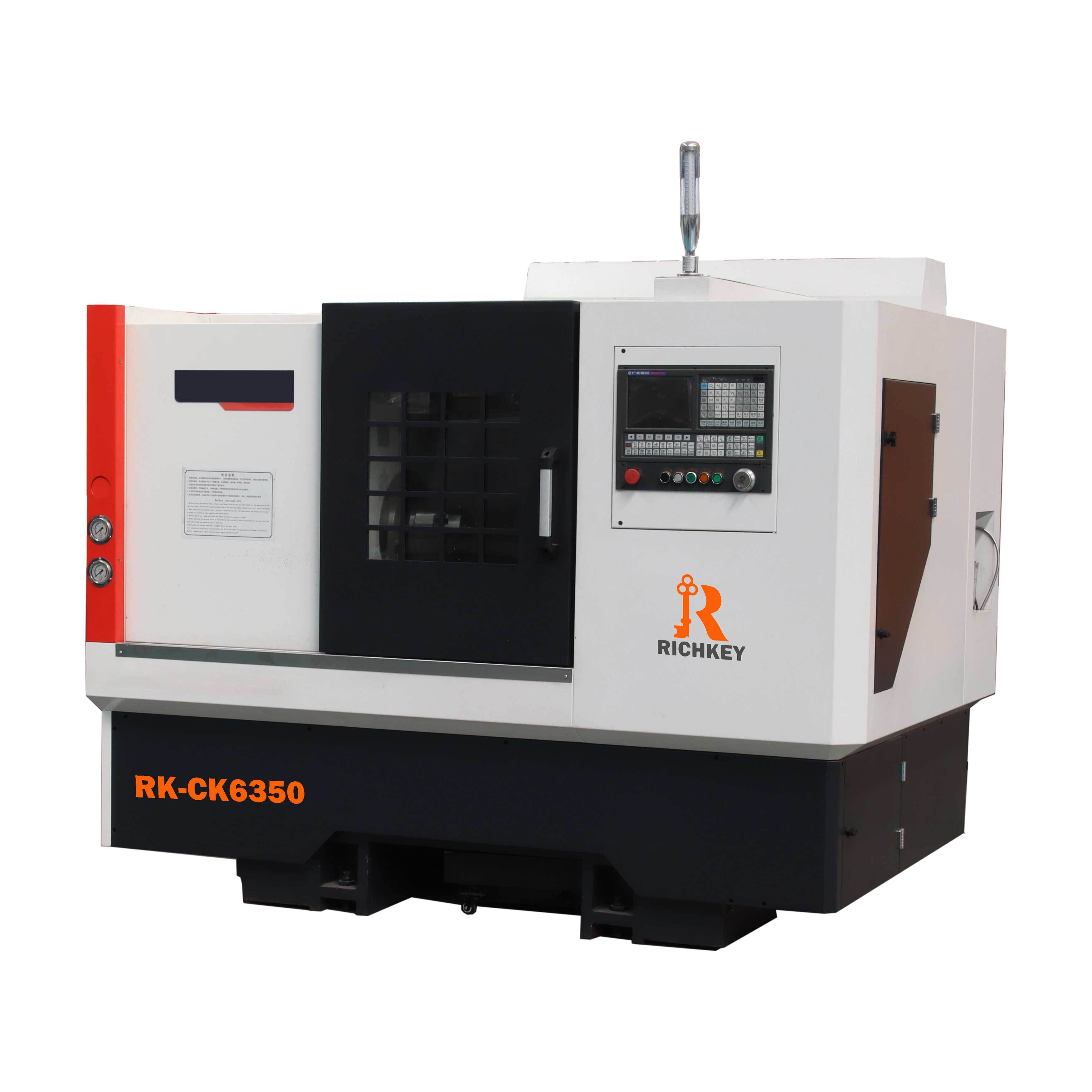

The 45° slant bed and linear guide way CNC lathe, specifically the RK-CK series, are designed for processing a variety of small to medium-sized shaft and plate workpieces. These machines can efficiently turn various threads, circle arcs, circular cones, and inside and outside surfaces of revolved bodies. The RK-CK series is widely used in multiple industries including:
|

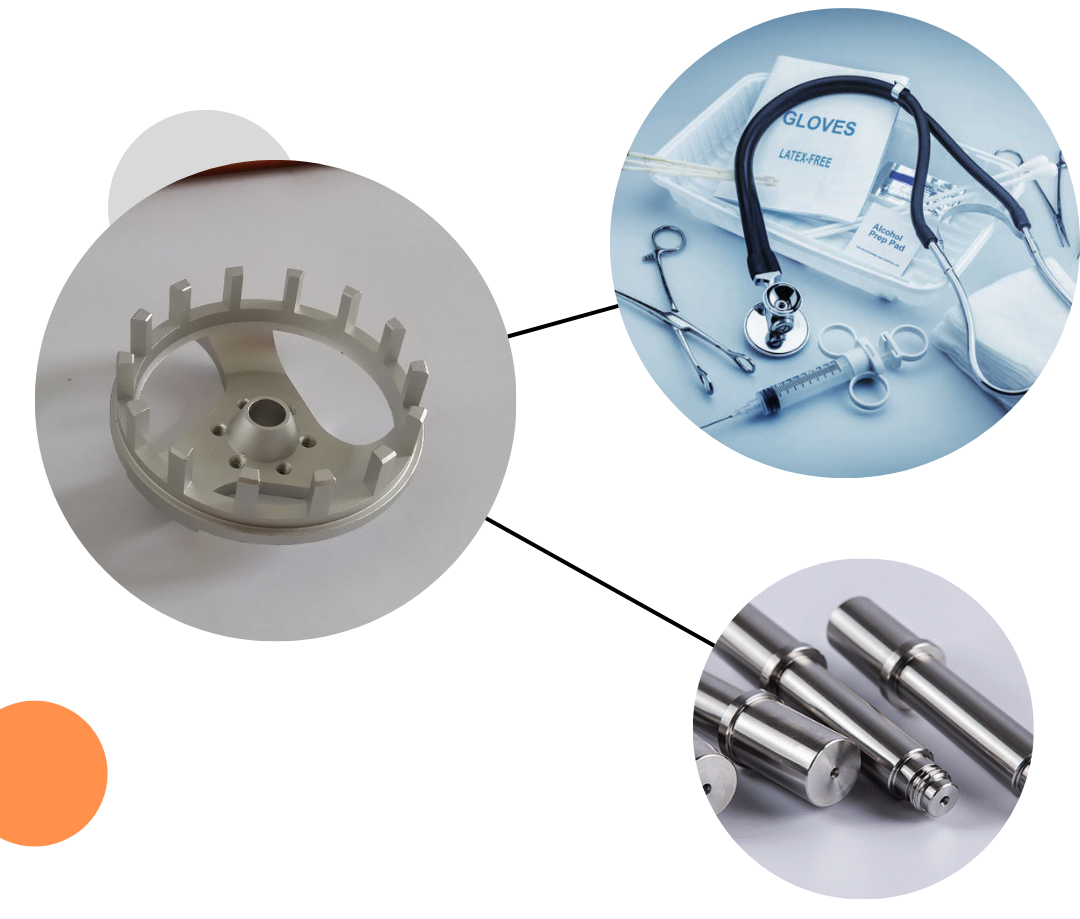

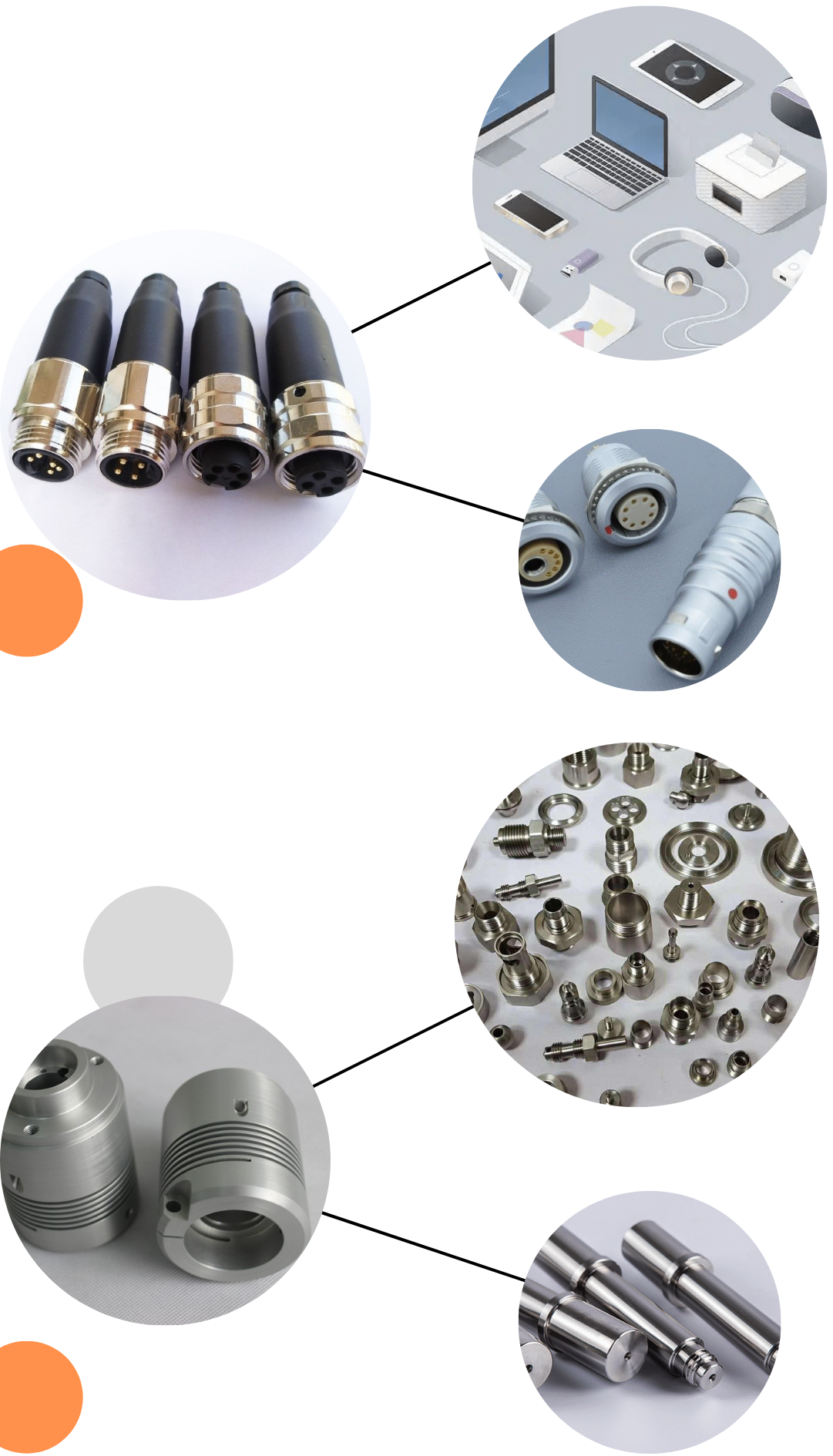

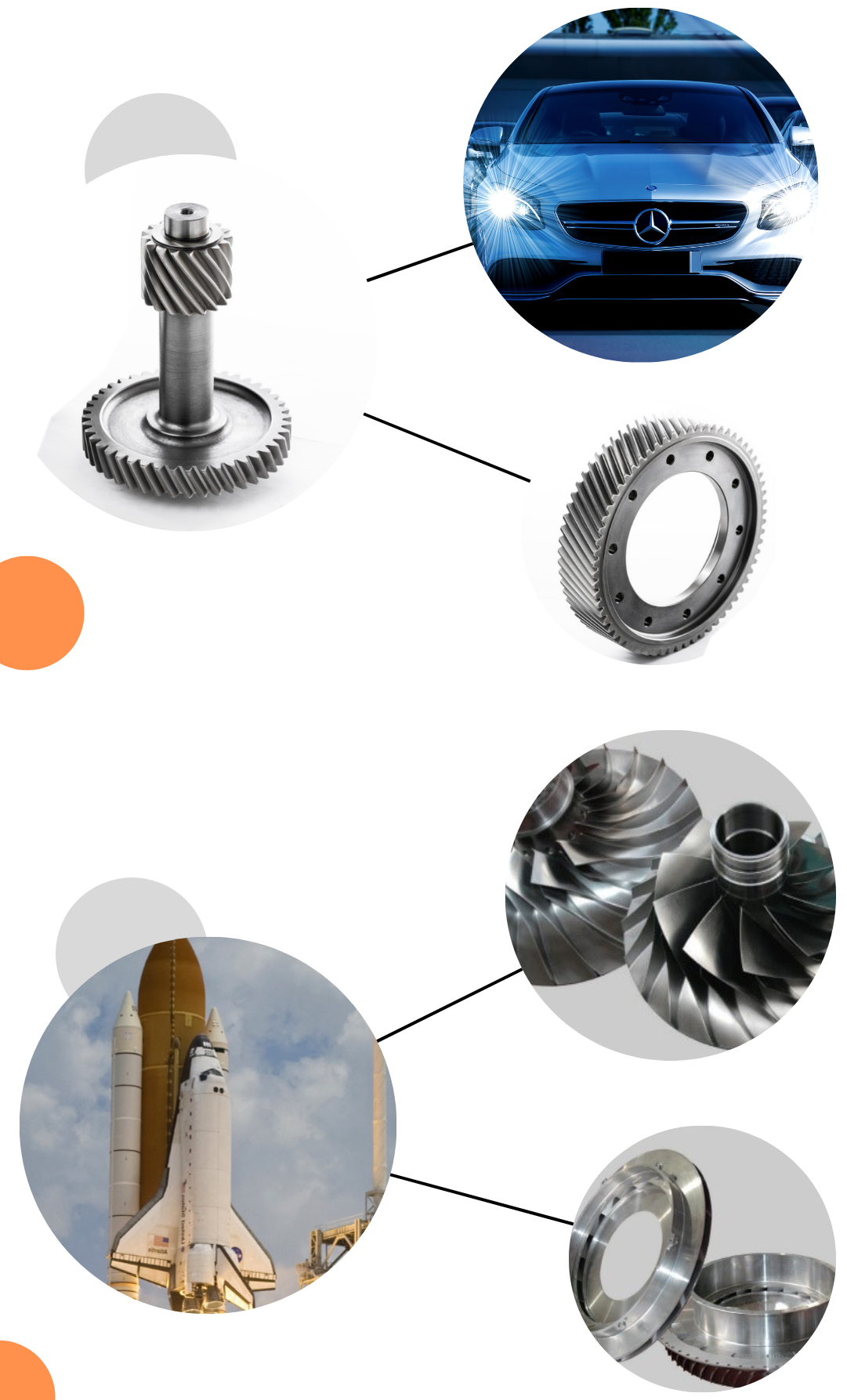

Item |
Unit |
RK-CK36A |
RK-CK46A |
RK-CK50A |
|
Maximum Swing Diameter Over Bed |
mm |
360 |
460 |
560 |
|
Maximum Swing Diameter Over Slide |
mm |
140 |
260 |
300 |
|
Maximum Workpiece Length |
mm |
300 |
350 |
300/ 500/ 800/ 1500 |
|
Maximum Bar Capacity |
mm |
38/ 44 |
44 |
55/ 75 |
|
Maximum Processing Diameter (plate) |
mm |
360 |
440/ 360 |
440/ 360 |
|
Spindle Nose |
GB59001 |
A2-5 |
A2-5 |
A2-6/ 8 |
|

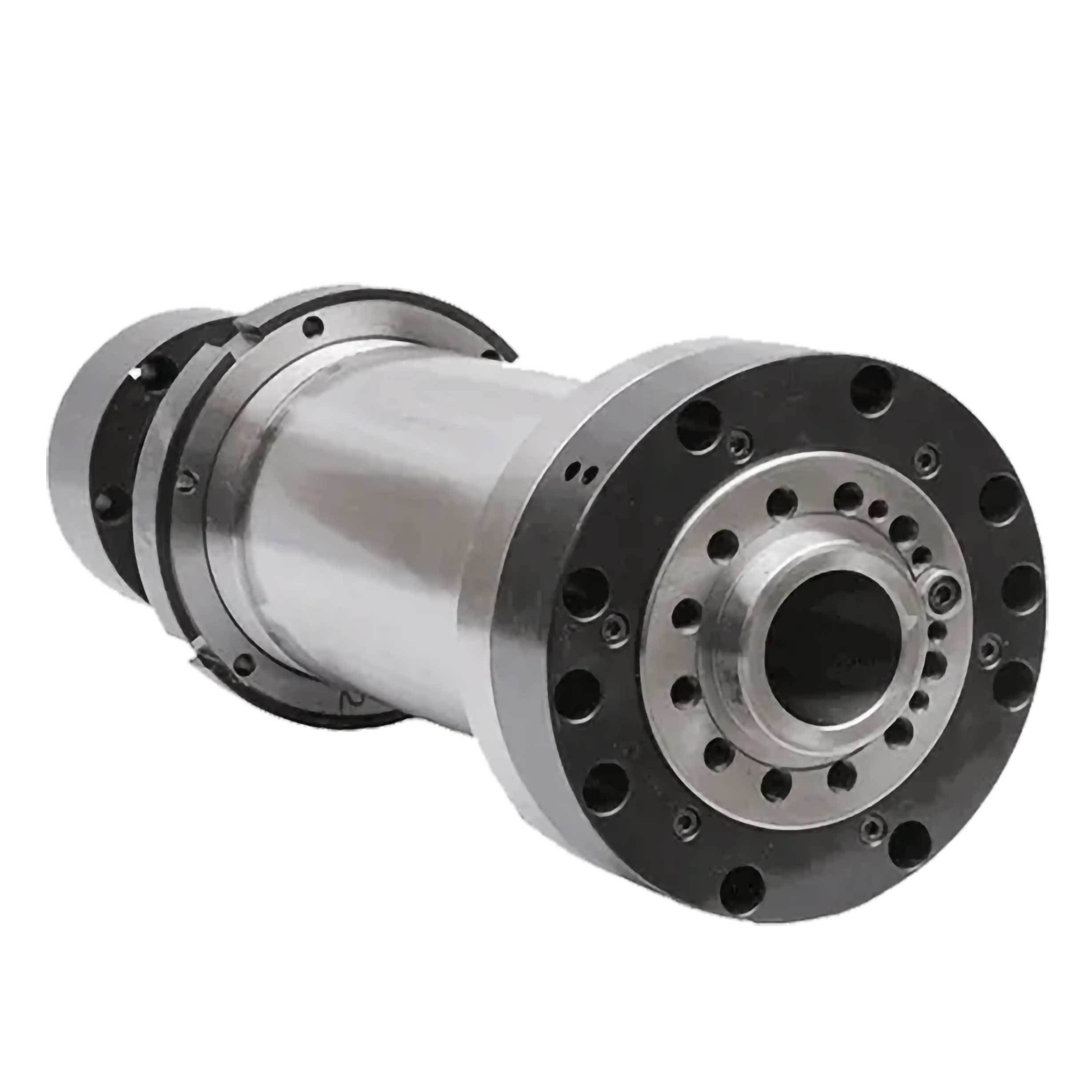

Spindle Bore |
mm |
φ48/56 |
φ56 |
φ66/68/86 |
|
Spindle Speed |
r/min |
50-4000 |
50-3500 |
50-3000 |
|
Spindle Shift Mode |
|
Stepless |
Stepless |
Stepless |
|
Spindle Motor Power |
kw |
5.5 |
7.5 |
11/11/15 |
|

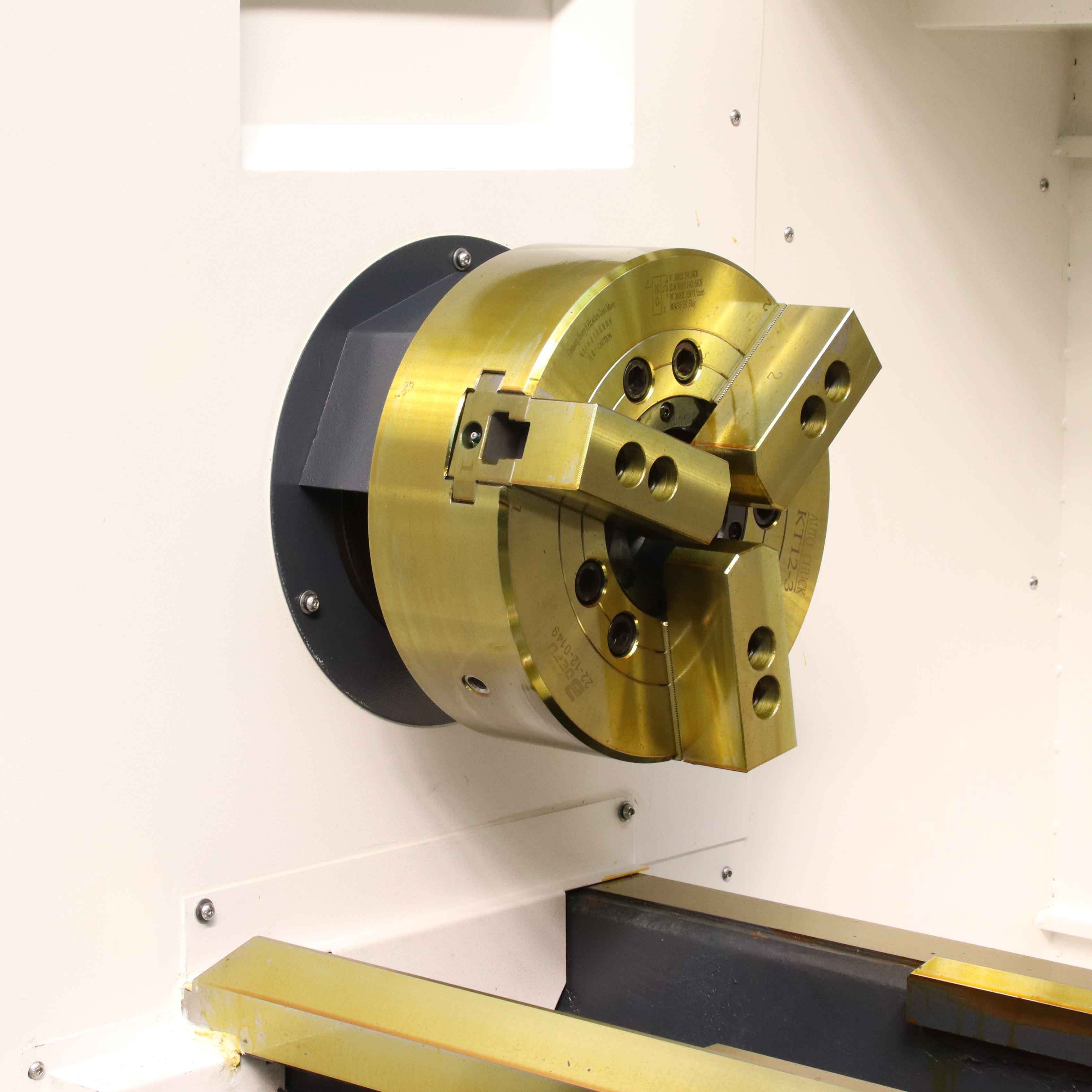

Chuck Type |
|
Hydraulic chuck |
Hydraulic chuck |
Hydraulic chuck |
|
Chuck Size |
inch |
6 |
8 |
10 |
|
X Axis Rapid Traverse |
m/min |
24 |
24 |
24 |
|
Z Axis Rapid Traverse |
m/min |
24 |
24 |
24 |
|
X Axis Servo Motor Torque |
N. m |
6 |
7.5 |
10/ 15 |
|
Z Axis Servo Motor Torque |
N. m |
6 |
7.5 |
10/ 15 |
|
X Axis Travel |
mm |
185 |
240 |
240 |
|
Z Axis Travel |
mm |
350 |
400 |
400/ 540/ 860/ 1560 |
|
Guide Way Type |
|
Linear |
Linear |
Linear |
|

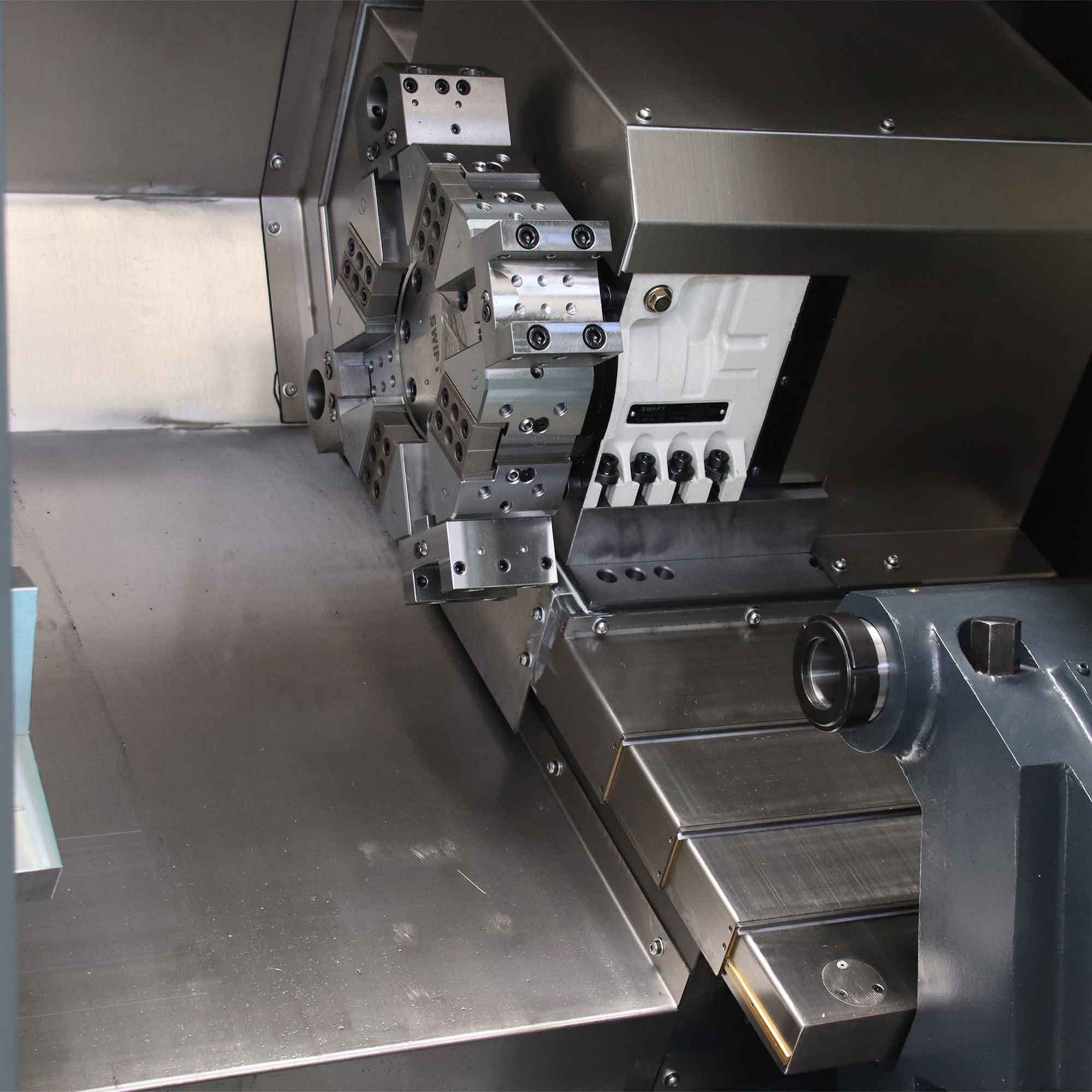

Turret Type |
|
Hydraulic |
Hydraulic |
Hydraulic |
|

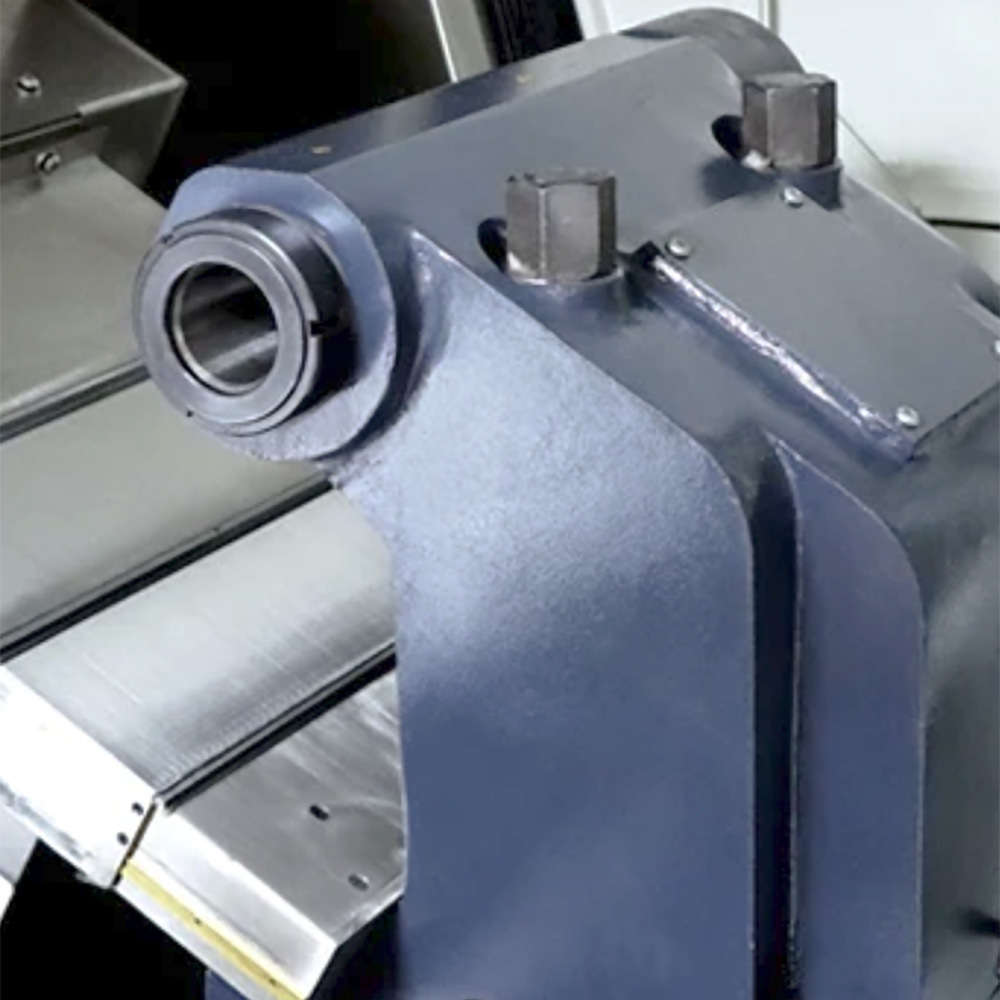

Tail Stock Quill Diameter |
mm |
φ65 |
φ70 |
φ70/ 90 |
|
Tail Stock Quill Travel |
mm |
60 |
80 |
80 |
|
Tail Stock Quill Taper |
|
MT4# |
MT5# |
MT5# |
|
Total Rated Power |
kw |
9 |
11 |
14/ 18/ 22 |
|
Total Rated Current |
A |
19 |
23 |
30 |
|
Net Weight |
kg |
2500 |
3000 |
3100/ 3300/ 4000/ 5000 |
|
Machine Dimension |
mm |
2200x1636x1850 |
2500x1950x1950 |
2600/ 2700/ 3300/ 4000x2000x2000 |
