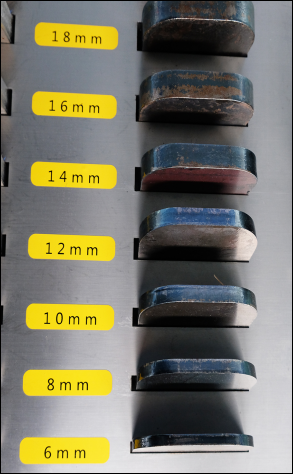

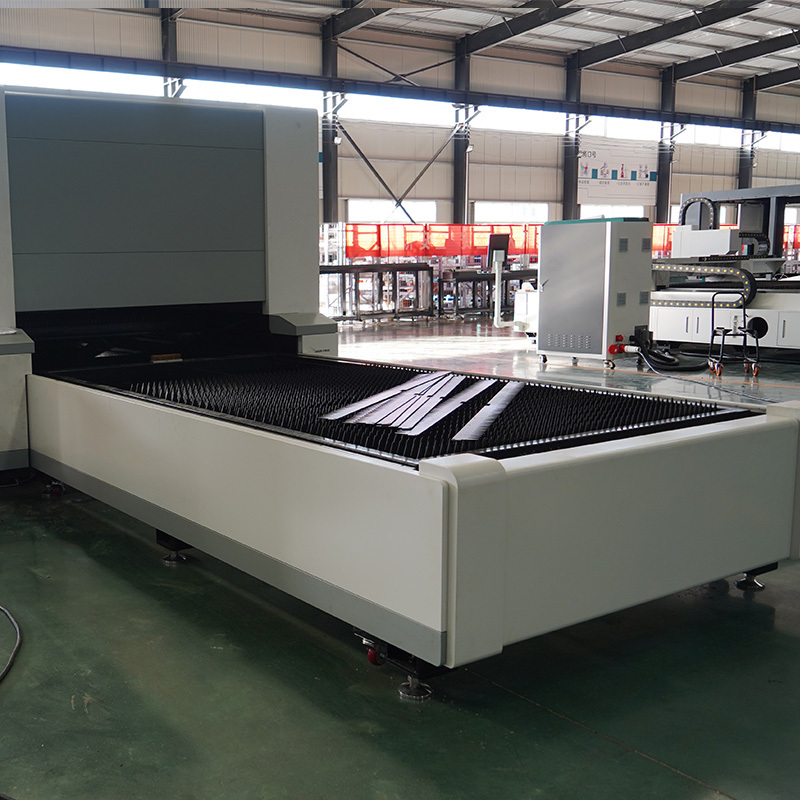

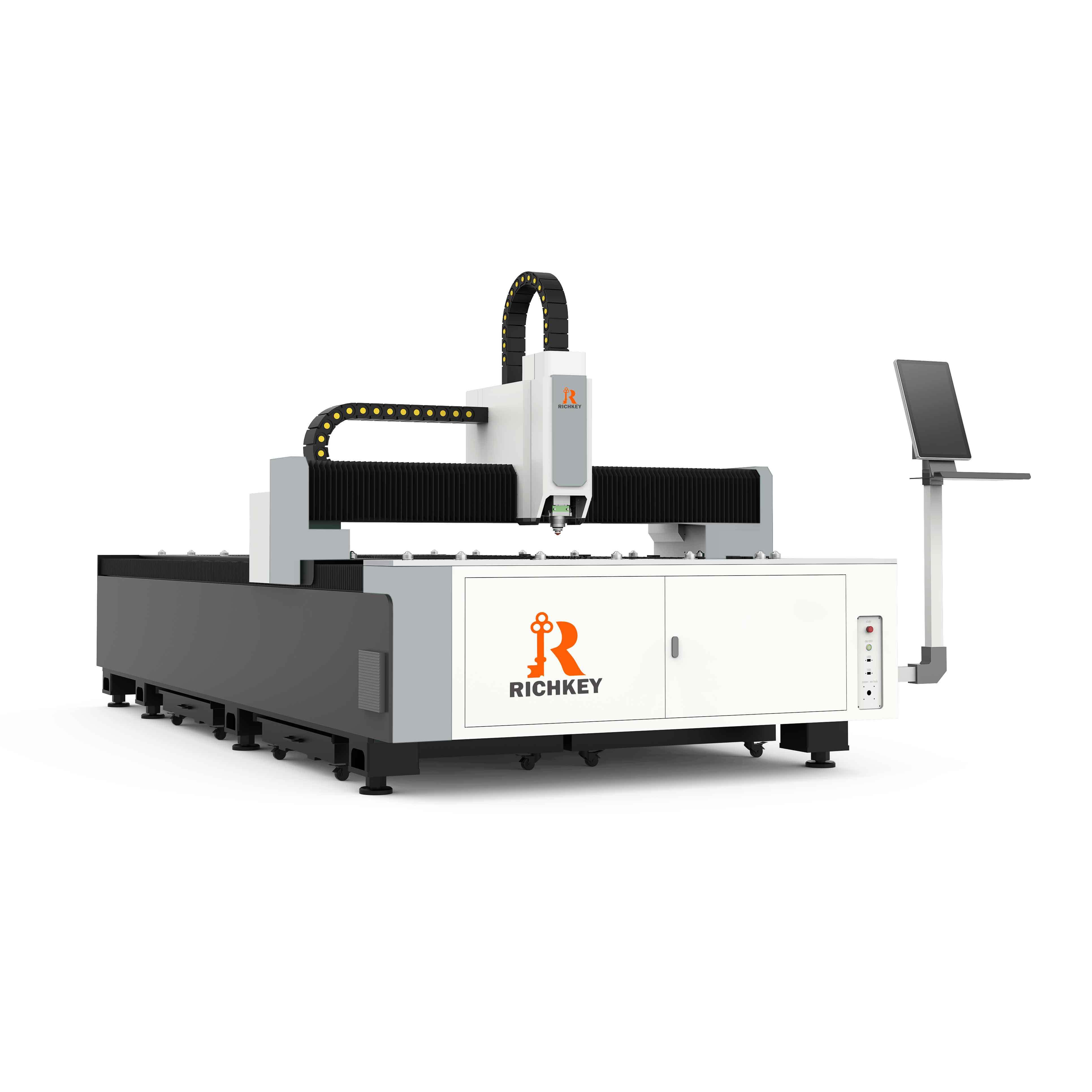

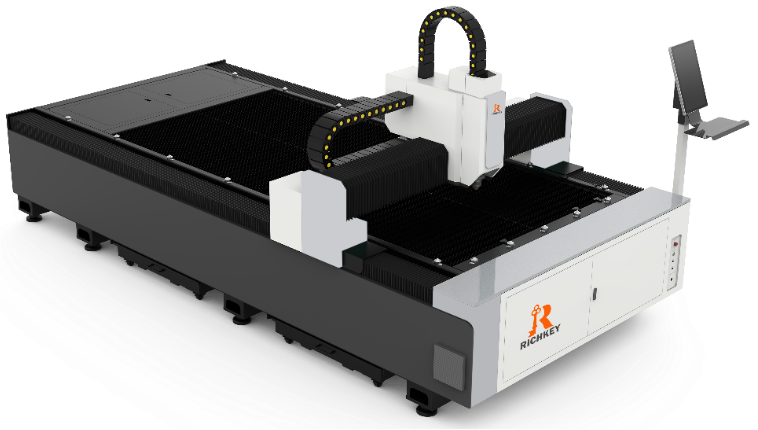

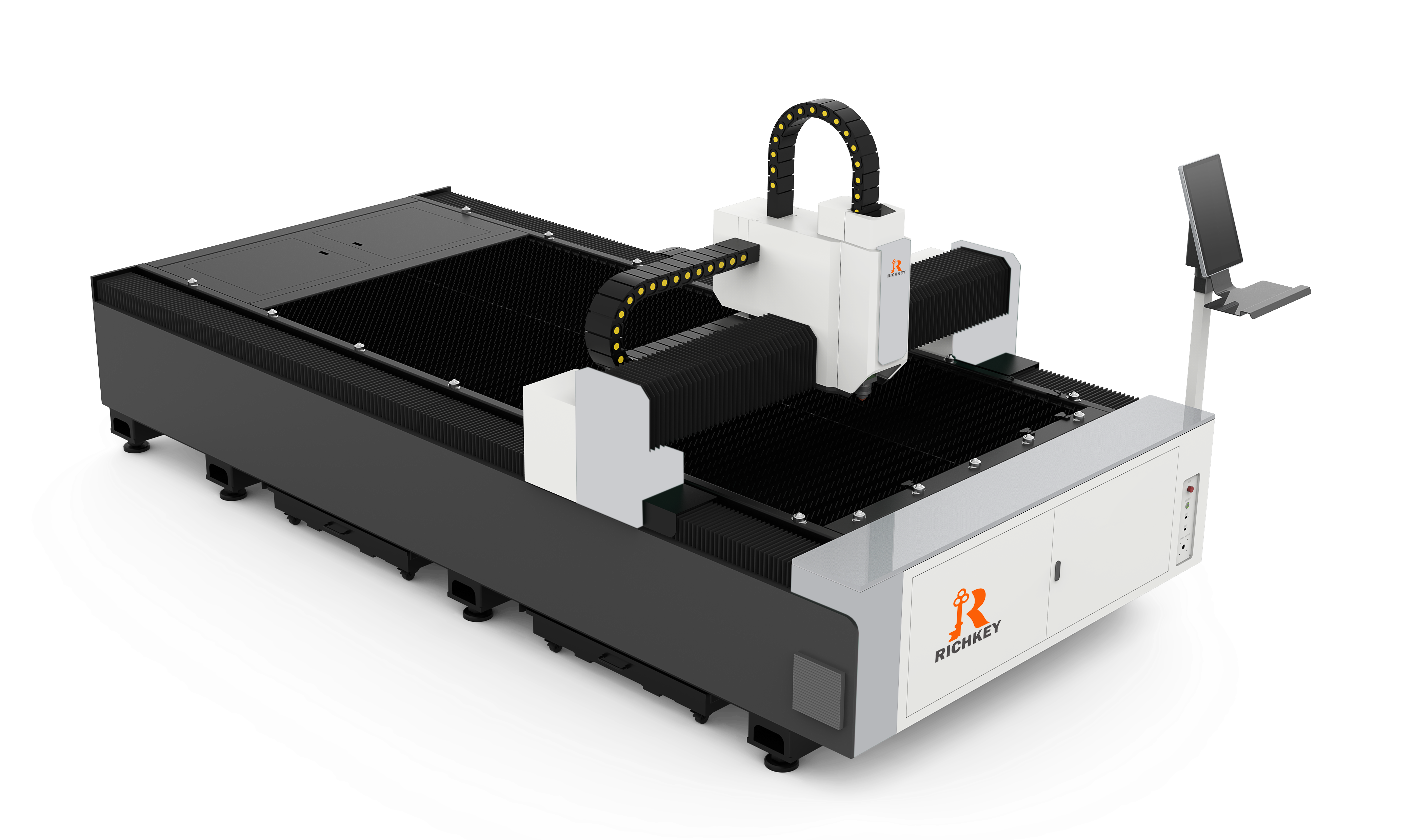

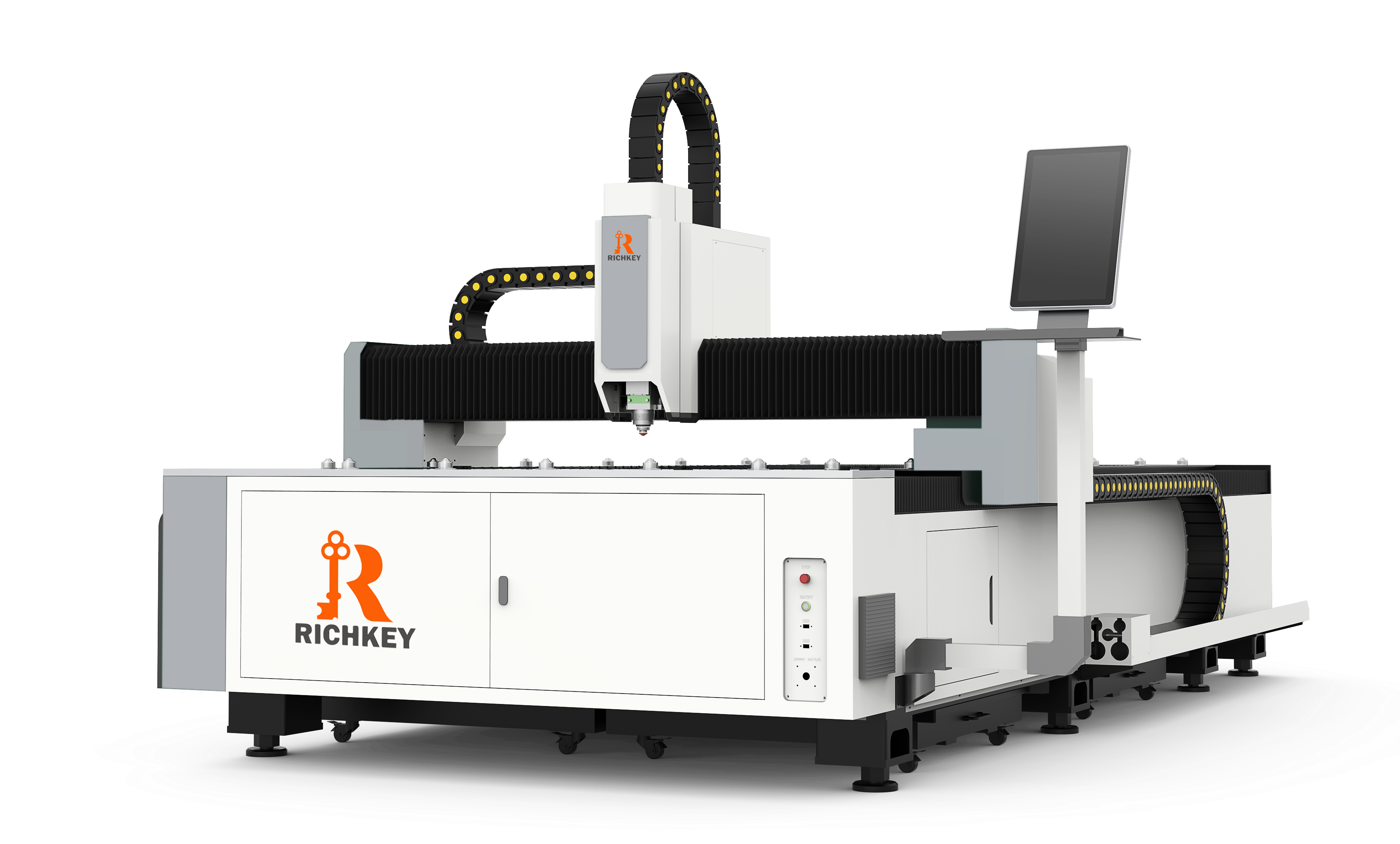

Fiber laser cutting systems have evolved into one of the most versatile and affordable metal working tools. Fiber lasers can cut metal materials of different thicknesses using only photon beams and auxiliary gases. Not only does it have excellent edge finish and high throughput, lasers can operate at extremely fast speeds and achieve higher cutting capabilities at high power to meet the needs of more metal processing industries.
| Model | RK-L FM 3015 | RK-L FM 4015 | RK-L FM 6015 | RK-L FM 4020 | RK-L FM 6020 | RK-L FM 6025 |

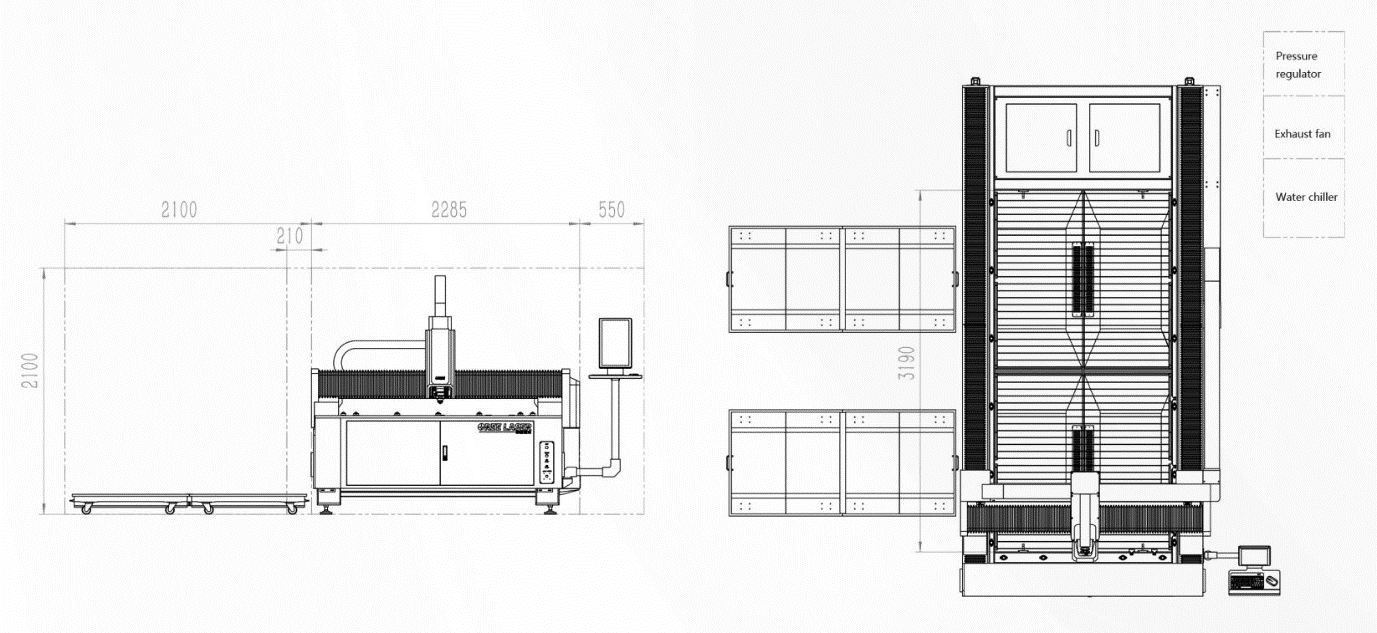

| Processing Format (mm) | 3050x1530 | 4050x1530 | 6050x1530 | 4050x2030 | 6050x2030 | 6050x2530 |
| Maximum Loading (kg) | 750 | 1000 | 1500 | 1350 | 1950 | 2500 |

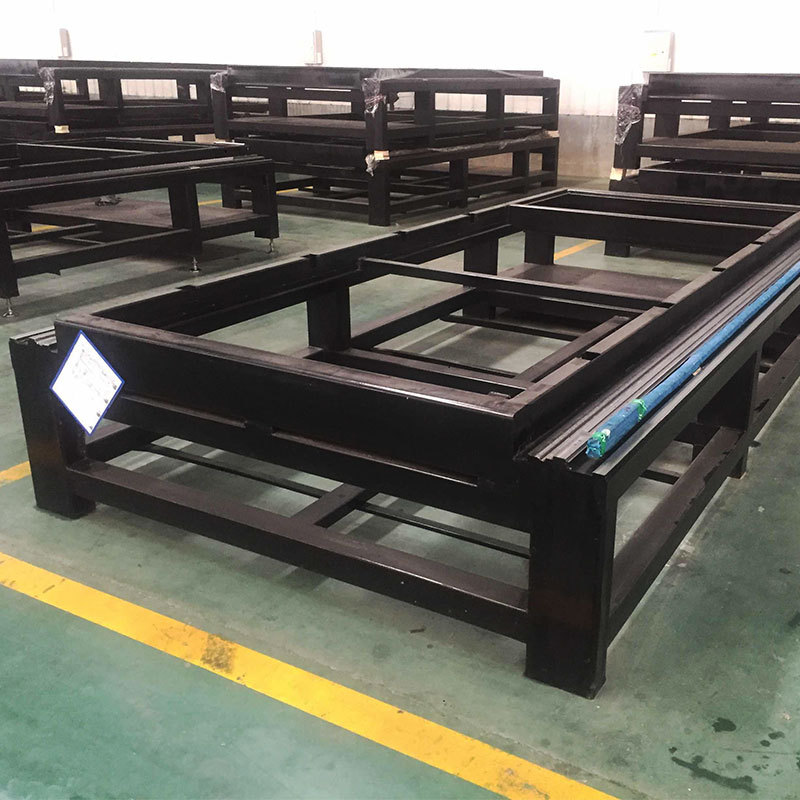

| Body Welding | Pipe | |||||

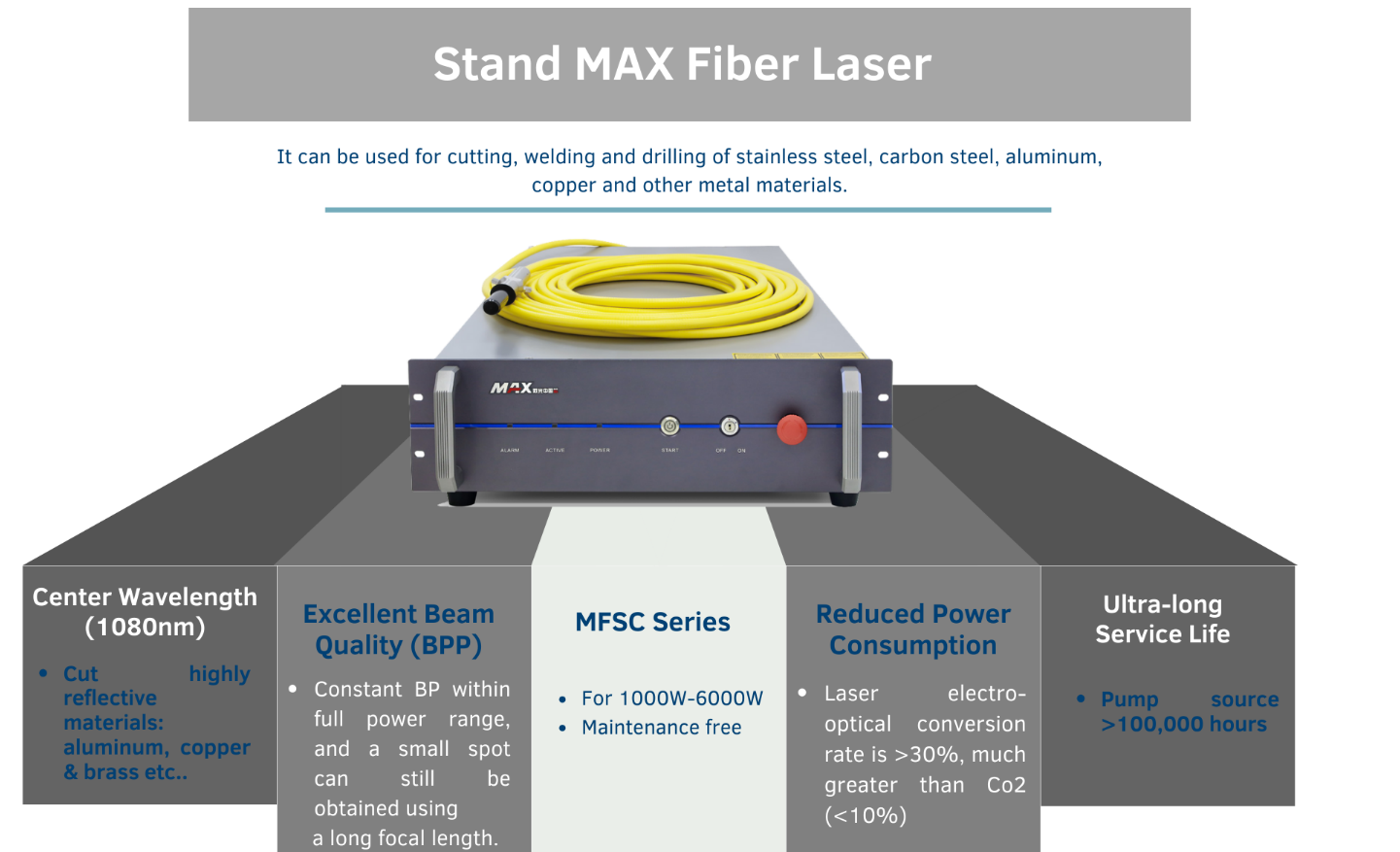

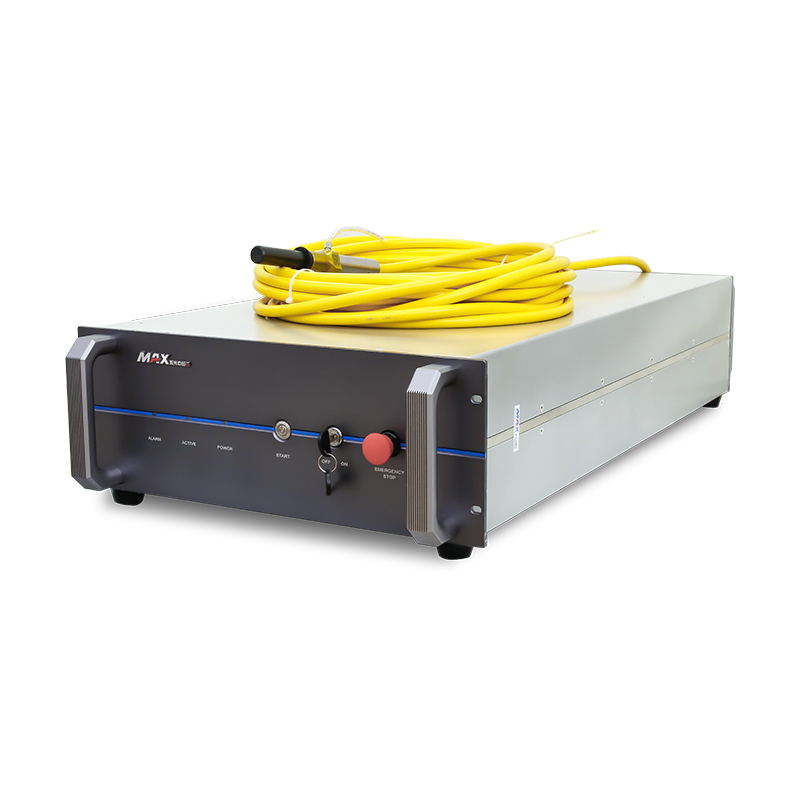

| Laser | Max MFSC series 1000-6000W (Option：Raycus / IPG) | |||||

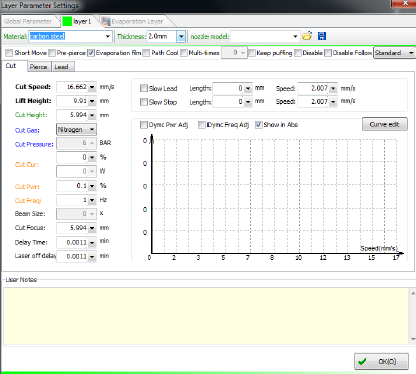

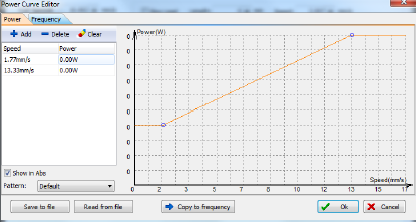

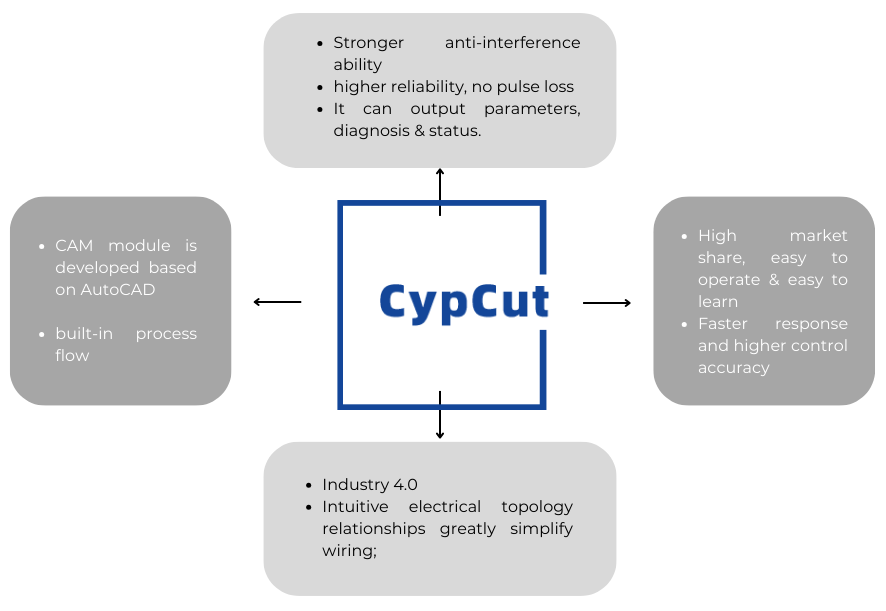

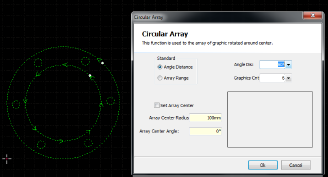

| CNC System | CypCut | |||||
| Laser Cutting Head | Raytools | |||||

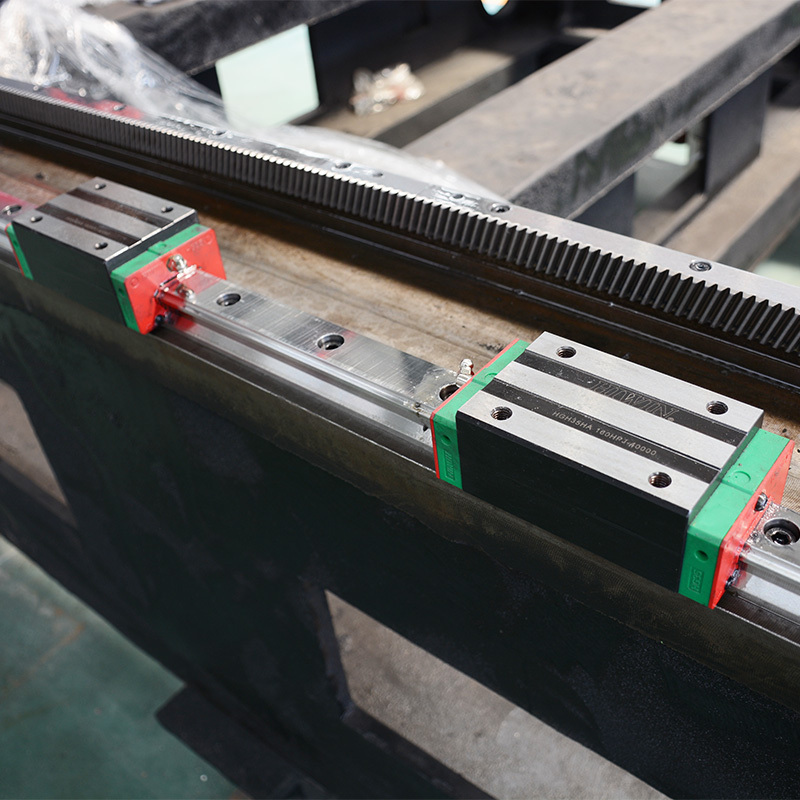

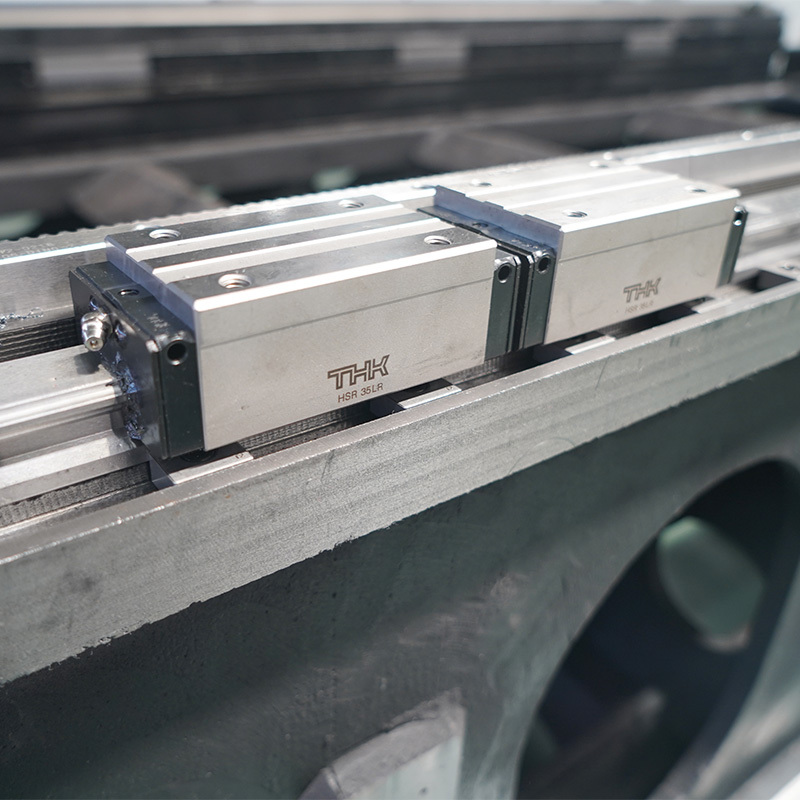

| X/Y Axis Guideway | TWIN | |||||

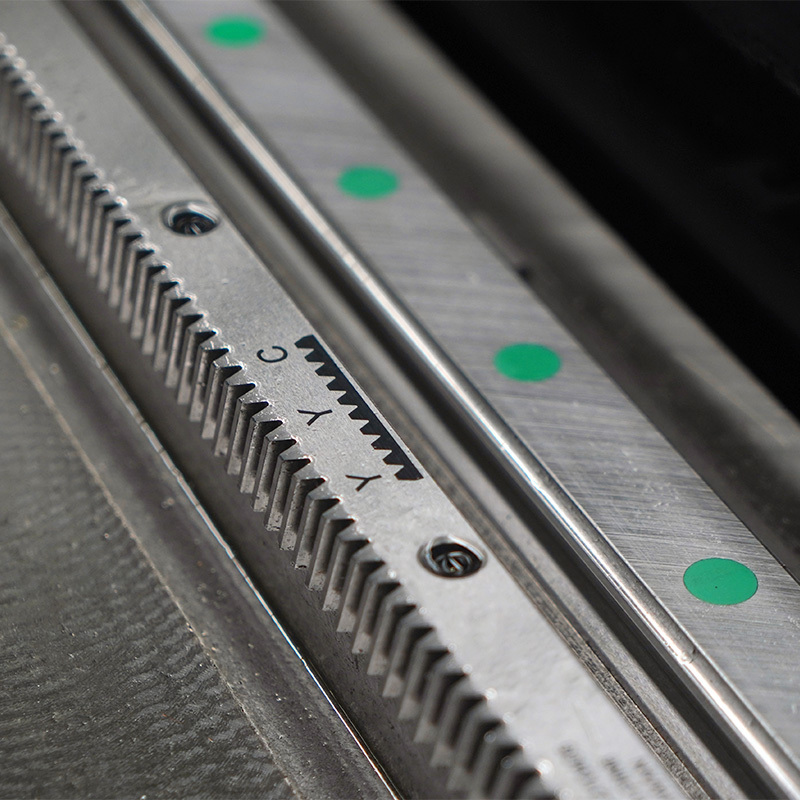

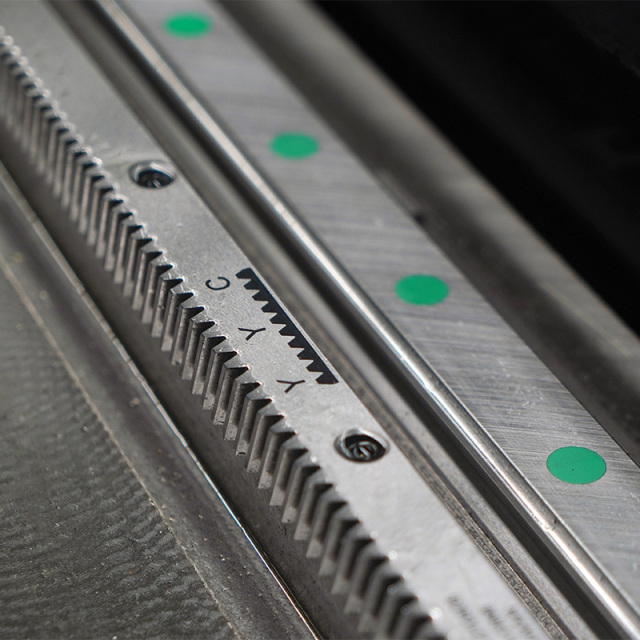

| X/Y Axis Precision Racks | TWIN | |||||

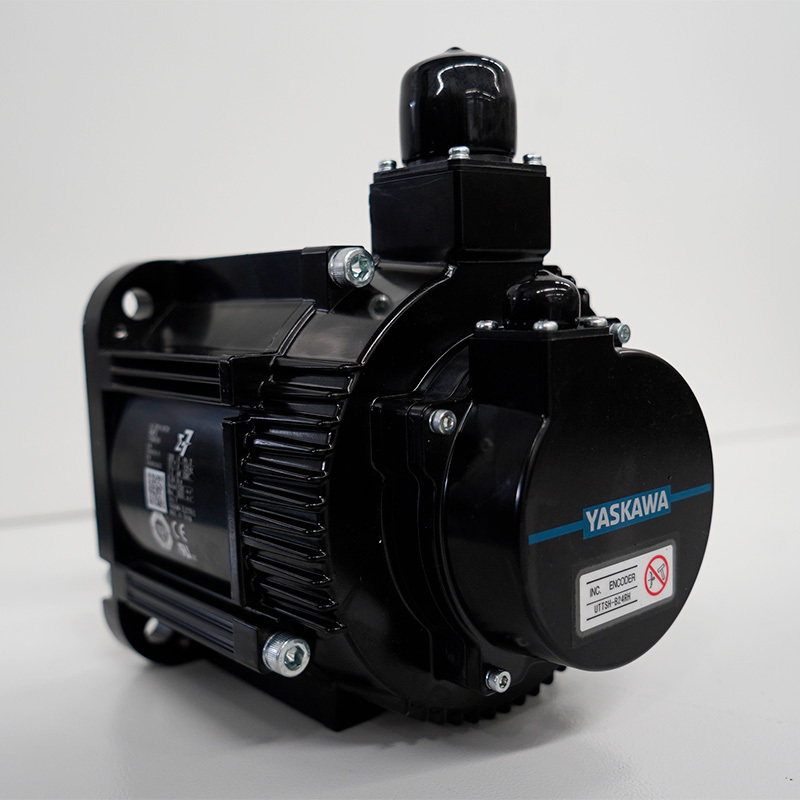

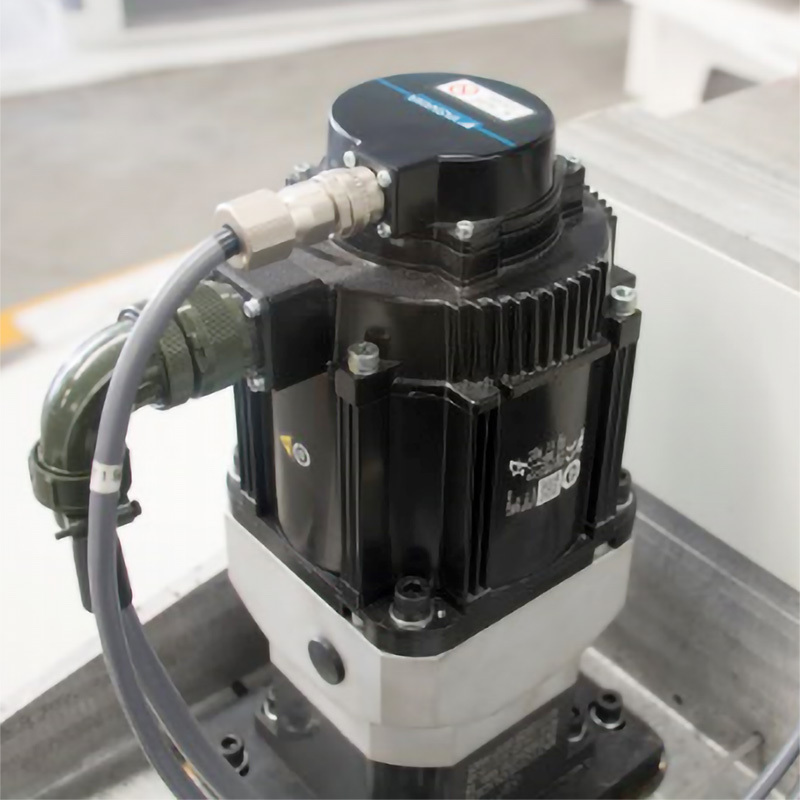

| X/Y/Z Axis Servo Motors | YASKAWA | |||||
| Reducer | KOFO | |||||

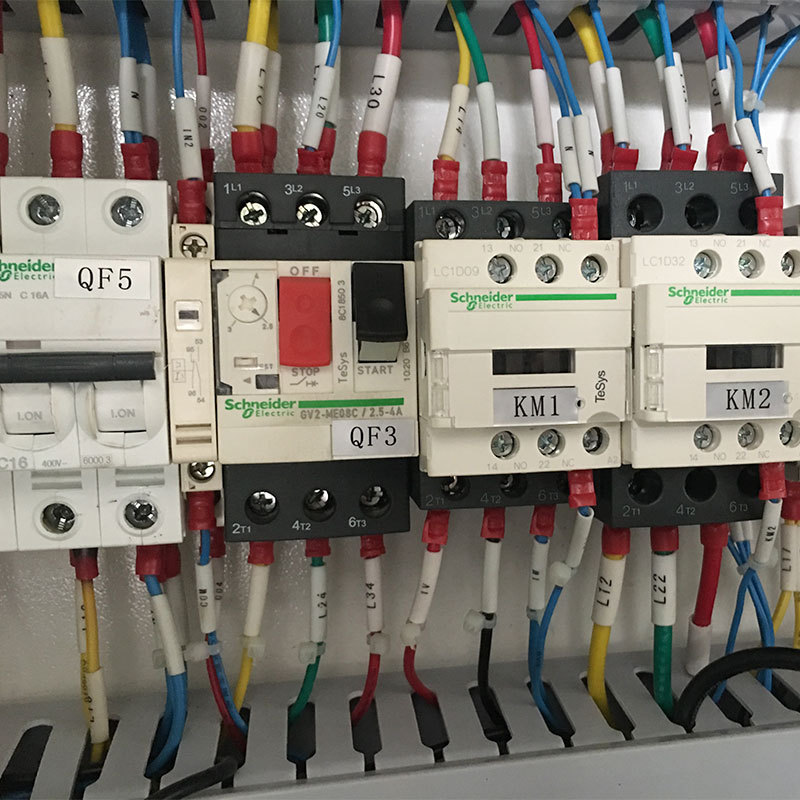

| Electrical Components | CHNT/Omron | |||||
| Pneumatic components | AirTAC | |||||
| Water chiller | S&A | |||||
| Positioning Accuracy | ±0.05mm | |||||
| Repeated Positioning Accuracy | ±0.03mm | |||||
| Maximum Moving Speed | 80m/min | |||||
| Best Roughness | Ra 6.5mm | |||||
| Option | HIWIN guideway & YYC racks/ Plate welding body/ Protective cover &Durable exchange platforms/ Bevel cutting | |||||
