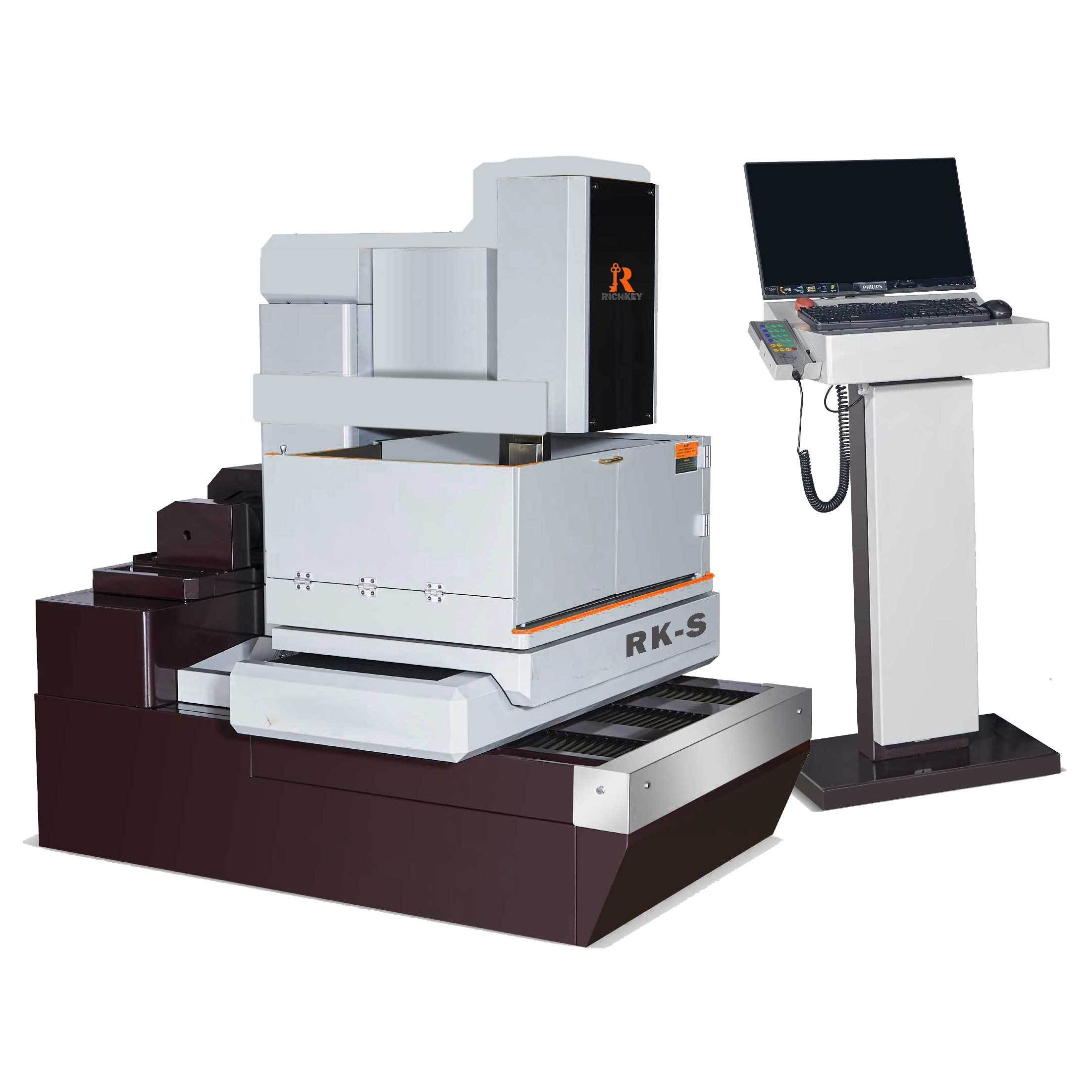

Molybdenum Wire EDM

Product Process

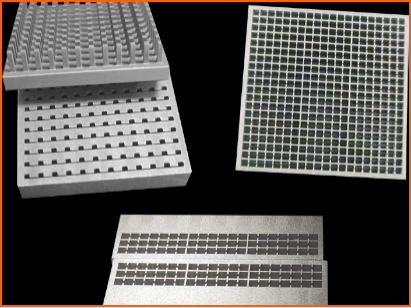

• Automation accessories, handicrafts (jewelry, ornaments), PCD tools, special materials (tungsten carbide, composite materials, etc.) mechanical parts (knitting machine accessories) etc..

Precision Machining

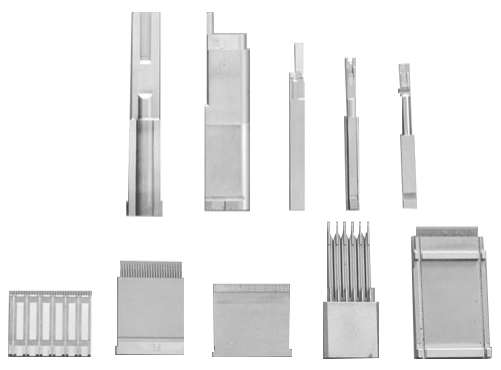

• High-speed punching, fixture inspection tools, can-making drawing molds, aerospace aviation parts, high-speed rail parts, automation accessories, high-precision processing of precision parts such as precision mechanical parts.

IT Industry

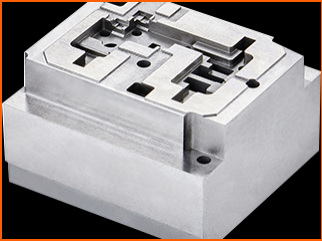

• Switch mold, socket mold, keyboard mold, circuit board molds, mobile phones, computers, radios, cameras, bluetooth headphones, electronic watches and other electronic product casings and motherboard molds

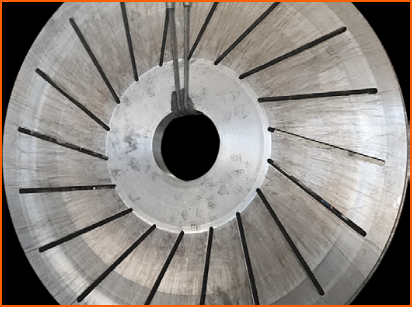

• Tools, motor rotors, electronic devices and instruments, etc.

Home Appliance

• Hardware stamping dies, air conditioners, washing machines, TVs, shell injection molds for lighting, rice cookers, and other furniture and kitchenware, plastic mold sloped roof and radiator, circuit board mold, etc.

Item

Unit

RK-S 430

RK-S 640

RK-S 850

Work Table Size

mm

680x485

830x580

1020x700

Travel of X/Y

mm

400x300

600x400

800x500

Travel of U/V

mm

60x60

60x60

60x60

Max. Cutting Thickness

mm

300

300

300

Max. Workpiece Weight

kg

400

400

400

Max. Machining Taper

°/mm

±6°/80

±6°/80

±6°/80

Machine Dimension

mm

1850x1300x2000

1900x1560x1900

2100x2100x2300

Machine Weight

kg

2000

2600

3000

Axis Resolution

0.01mm

Positioning Accuracy of Full Travel

≤0.005mm/300mm

Positioning Accuracy

≤0.005mm/300mm

Wire Diameter

0.12~0.22mm

Max. Efficiency

≥200 mm²/h, multiple trims≥3500 mm²/h (Cr12,H=60mm)

Best Roughness

1 cut Ra≤2.5μm, 1 cut 2 trims Ra≤0.6μm ((linear cutting, H≤40mm)

Interface

LAN/ RS232/ USB

Water Tank Size

≥100L

Electrical Cabinet Dimension

360x650x920mm
